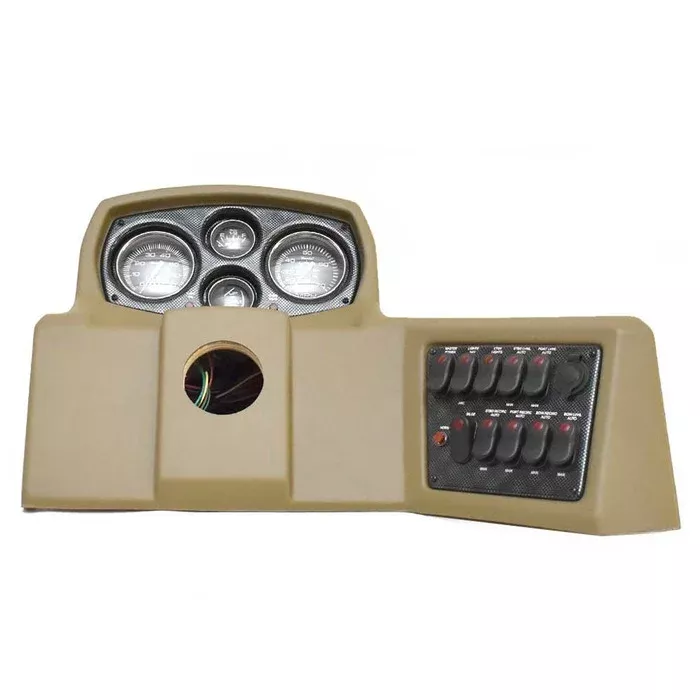

Boat part number 7501263 is a new dash console panel for G3 Boats, part number 73427463 .
This dash console is constructed out of brown plastic coated fiberglass. It features black and silver faux carbon fiber patterned accents. It measures approximately 22 1/4″ L x 27 3/4″ D x 11″ H overall.
This panel has (4) pre-installed Faria gauges. Each gauge has a domed lens, silver colored bezel, black colored face, white needle and white graphics.
Features the following gauges:
- (1) Tachometer | Gasoline | 4/6/8/10 Cycle Inboard, 1/2/3/4/5 Pole Outboard
- (1) Fuel Level
- (1) Trim | Mercury
- (1) Speedometer | Pitot Connection
Features the following pre-installed red illuminated rocker switches:
- (1) Master Power | ON/OFF
- (1) Lights Navigation/Anchor | ON/OFF/ON
- (1) Courtesy Lights | ON/OFF
- (1) Starboard Livewell Auto/Manual | ON/OFF/ON
- (1) Port Livewell Auto/Manual | ON/OFF/ON
- (1) Bilge | ON/OFF
- (1) Starboard Recirc Auto/Manual | ON/OFF/ON
- (1) Port Recirc Auto/Manual | ON/OFF/ON
- (1) Bow Recirc Auto/Manual | ON/OFF/ON
- (1) Bow Livewell Auto/Manual | ON/OFF/ON
Also features the following:
- (1) Horn Push Button Switch | Momentary ON/OFF
- (1) 12V Receptacle
- (1) Fuse Panel
- (12) Fuses
- (1) 3 1/4″ Dia. Steering Column Cutout
- (1) Low Oil Red Indicator Light
- (1) Over Heat Red Indicator Light
Has the following connections:
- (1) 14-Pin Female
- (1) 4-Pin Female
- (3) Female Bullets
- (2) Male Bullets
- (1) Female Spade
Specifications:
- Boat Manufacturer: G3 Boats
- Part Number: 73427463
- Material: Fiberglass / Plastic
- Color: Brown
- Finish: Textured
- Overall Dimensions: 22 1/4″ L x 27 3/4″ D x 11″ H
- Fuel: Gasoline
- Set up for: 4/6/8/10 Cycle Inboard, 1/2/3/4/5 Pole Outboard
- Engine Type: Mercury
