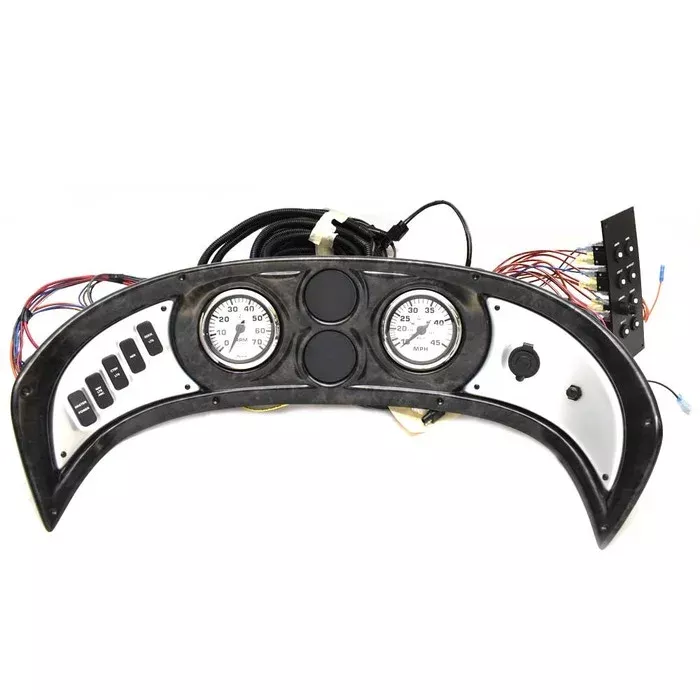

Boat part number 7501071 is a new dash panel for G3 Boats, part number 73422975 . Manufactured by Marine Electrical Products, part number F03373422975 .
This dash panel is constructed out of black faux woodgrain colored plastic with silver accents and a matte finish. Measures approximately 27″ W x 6 5/8″ H overall.
Features (2) pre-installed Spun Silver series gauges from Faria. Each gauge features a domed lens, silver colored bezel, spun silver face, black needles, and black graphics.
Features the following gauges:
- (1) Tachometer | Gasoline | 4/6/8 cylinder inboard, 4/6/8/10/12 cycle outboard
- (1) Speedometer | (1) pitot connection
Also features the following:
- (1) Master Power Rocker Switch | ON/OFF
- (1) Navigation/Anchor Lights Rocker Switch | ON/OFF/ON
- (1) Courtesy Lights Rocker Switch | ON/OFF
- (1) Aerator Rocker Switch | ON/OFF
- (1) Dock Lights Rocker Switch | ON/OFF
- (1) 12V Receptacle
- (1) Horn Push Button Switch | Momentary ON/OFF
- (1) Breaker Panel
- (1) Lights Push-to-Reset Breaker
- (1) Horn Push-to-Reset Breaker
- (1) Courtesy Lights Push-to-Reset Breaker
- (1) 12V Outlet Push-to-Reset Breaker
- (1) Livewell Push-to-Reset Breaker
- (1) Stereo Push-to-Reset Breaker
- (1) Dock Light Push-to-Reset Breaker
- (1) Accessory Push-to-Reset Breaker
There are the following connections:
- (1) 8-pin female
- (1) 4-pin female
- (1) dual single male/female pin
- (1) 4-pin female Deutsch
- (6) single female pin
- (8) single female spade
- (2) single male pin
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: G3
- Part Number: 73422975
- Part Manufacturer: Marine Electrical Products (MEP)
- Part Number: F03373422975
- Material: Plastic
- Color: Black Faux Woodgrain / Silver
- Finish: Matte
- Overall Dimensions: 27″ W x 6 5/8″ H
