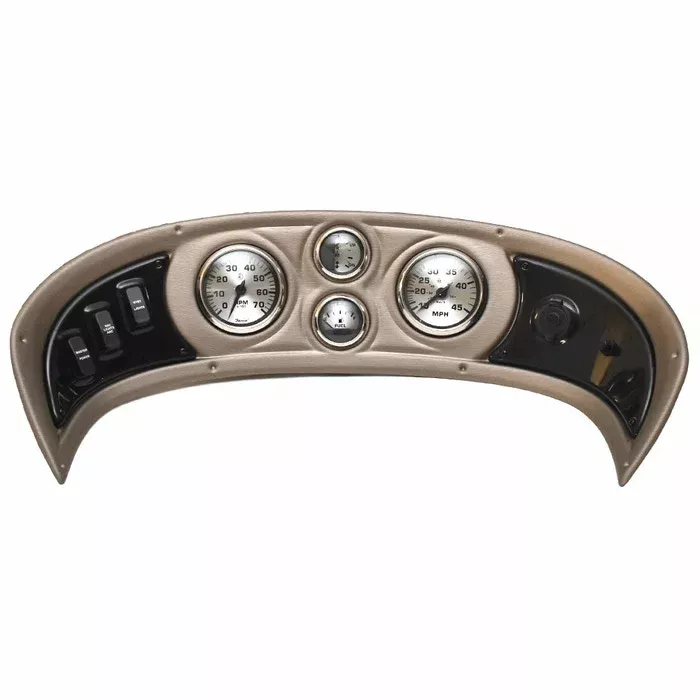

Boat part number 7501557 is a new gauge dash panel for G3 Boats. Manufactured by Marine Electrical Products, part number F03373422844 .
This gauge panel is constructed out of matte brushed bronze colored plastic with glossy black accents. It measures approximately 25 1/2″ W x 7″ H x 12″ D overall.
This panel has (4) pre-installed Spun Silver series gauges from Faria Beede. Each gauge has a domed lens, silver bezel, spun silver face, black needle, and black graphics.
This panel features the following gauges:
- Tachometer | P/N: TCC034B | Gasoline | Mercury | 4/6/8 cylinder and 4/6/8/10/12 pole
- Trim | P/N: GPC831B | Mercury engines
- Fuel Level | P/N: GPC629B
- Speedometer | P/N: SEK048A | (1) pitot connection
This panel features the following pre-installed switches:
- Master Power Rocker Switch | On/Off
- Navigation/Anchor Lights Rocker Switch | On/Off/On
- Courtesy Lights Rocker Switch | On/Off/On
- Horn Booted Push Button Switch | Momentary On/Off
This panel also includes the following:
- 12V Receptacle
- 3 1/2″ W x 8″ H Breaker Panel
The breaker panel features the following white push-to-reset circuit breakers:
- Lights
- Horn
- Courtesy Light
- 12V Outlet
- Stereo
- (3) Accessory
There are the following connections:
- (1) 8-pin female
- (1) 4-pin female
- (1) dual male/female pin
- (6) female single spade
- (2) male bullets
- (1) female bullet
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Tag reads: PANEL V C/RC/GT 2015 NP9072
Specifications:
- Boat Manufacturer: G3
- Part Manufacturer: Marine Electrical Products
- Part Number: F03373422844
- Material: Plastic
- Color: Brushed Bronze / Black
- Finish: Matte / Glossy
- Overall Dimensions: 25 1/2″ W x 7″ H x 12″ D
- Fuel: Gasoline
- Set Up For: 4/6/8 cylinder and 4/6/8/10/12 pole
- Used on These Engines: Mercury
