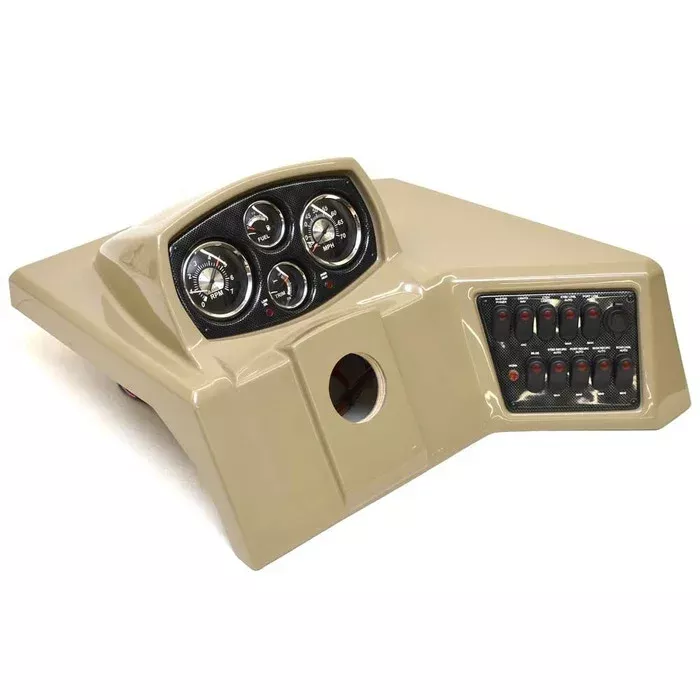

Boat part number 7501680 is a new dash steering console shroud panel for G3 Boats, part number 73427520 . Manufactured by Marine Electrical Products, part number F03373427520 .
This dash console is constructed from taupe plastic coated fiberglass with a glossy finish. Features black and silver faux carbon fiber patterned accents. It measures approximately 24 1/2″ W x 13″ H x 26 1/2″ D overall.
This panel has (4) pre-installed Sterling Black series gauges from Veethree. Each gauge has domed lens, silver colored bezel, black/silver face, orange/black needle, and white graphics.
This panel features the following gauges:
- (1) Tachometer | P/N: 67363F | Gasoline | 4/6/8 cylinder 2/3/4/5/6 pole
- (1) Fuel Level | P/N: 67021F
- (1) Trim | P/N: 67023F | Mercury / Yamaha (2001 and newer)
- (1) Speedometer | P/N: 67285F | (1) pitot connection
This panel features the following pre-installed red illuminated rocker switches:
- (1) Master Power | ON/OFF
- (1) Lights Navigation/Anchor | ON/OFF/ON
- (1) Courtesy Lights | ON/OFF
- (1) Starboard Livewell Auto/Manual | ON/OFF/ON
- (1) Port Livewell Auto/Manual | ON/OFF/ON
- (1) Bilge | ON/OFF
- (1) Starboard Recirc Auto/Manual | ON/OFF/ON
- (1) Port Recirc Auto/Manual | ON/OFF/ON
- (1) Baitwell Auto/Manual | ON/OFF/ON
- (1) Aerator Auto/Manual | ON/OFF/ON
This panel also features the following:
- (1) Horn Push Button Switch | Momentary ON/OFF
- (1) 12V Receptacle
- (1) 3 1/4″ Dia. Steering Cutout
- (1) Low Oil Red Indicator Light
- (1) Over Heat Red Indicator Light
- (1) Fuse Panel
There are the following connections:
- (1) 14-pin female
- (1) 4-pin female
- (1) male bullet
- (2) female bullet
- (2) female spades
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: G3
- Model/Year: Unavailable
- Part Number: 73427520
- Part Manufacturer: Marine Electrical Products (MEP)
- Part Number: F03373427520
- Material: Fiberglass / Plastic
- Color: Taupe / Black
- Finish: Glossy
- Overall Dimensions: 24 1/2″ W x 13″ H x 26 1/2″ D
- Fuel: Gasoline
- Set Up For: 4/6/8 cylinder 2/3/4/5/6 pole
- Used on These Engines: Mercury / Yamaha (2001 and newer)
