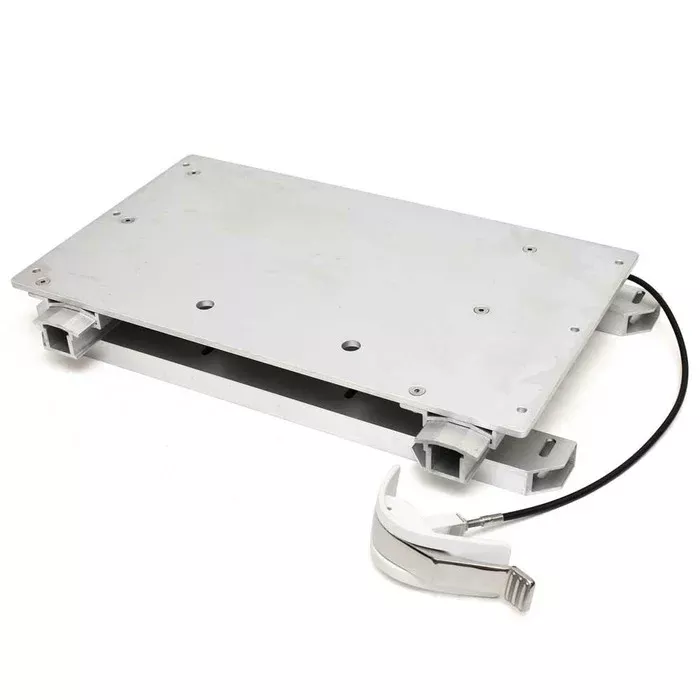

Boat part number 1109020 is a new dual lock tandem seat slide from Garelick, part number 75002-62 .
This seat slide is constructed out of aluminum and measures approximately 21″ L x 14″ W x2 3/4″ H overall. The slides mount via (8) 1″ L x 1/4″ W slotted mounting holes. The seat plate hosts (2) 5/8″ Dia. and (6) 1/4″ Dia. mounting holes, arranged in a 9 1/2″ x 19″ mounting pattern. This seat slide features cable-actuated locks that hold it in place. These are connected to a stainless steel lever.
Specifications:
- Part Manufacturer: Garelick
- Part Number: 75002-62
- Material: Aluminum
- Color: Silver
- Overall Dimensions: 21″ L x 14″ W x2 3/4″ H
- Mounts: (8) 1″ L x 1/4″ W Slotted Mounting Holes
- Mounting Pattern: 9 1/2″ x 19″
- Travel Distance: 4″
