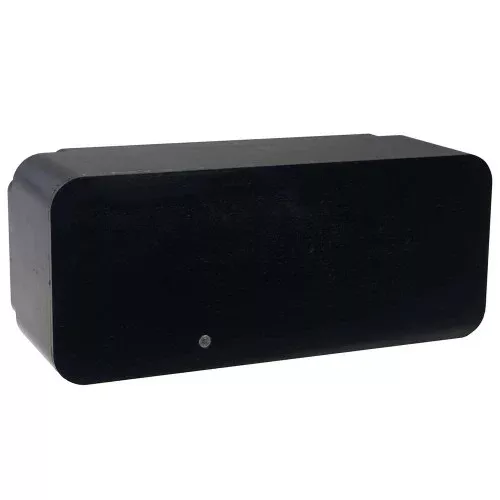

Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz
A pocket version of the R599LH, this 1 to 3 kW bare wire plastic transducer has a maximum depth of 10,000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; and a beamwidth of 9×23 degrees or a constant 25 degrees.
| Model | Airmar CM599LHW |
|---|---|
| Mount Style | Pocket mount |
| Material | Plastic |
| Connector | Confirm connector |
| Power | 3kW |
| Frequency / CHIRP | 150-250kHz, 28 to 60 kHz, 150 to 250 kHz |
| MPN | 010-12188-20 |
Technical specifications
| Power | 3kW |
|---|---|
| Frequency | 150-250kHz, 28 to 60 kHz, 150 to 250 kHz |
| Tilt / Deadrise | 23° |
| Mount Style | Pocket mount |
| Material | Plastic |
| Connector | Confirm connector |
| Operating Frequency | 28 to 60 kHz and 150 to 250 kHz |
| Beamwidth | 9×23 degrees or a constant 25 degrees |
| Depth | 10,000 feet |
| Temperature | Yes |
| Speed Included | No |
| Connector Pins | Bare Wires |
| Mounting Style | |
| Cable Length | 70′ |
| CHIRP | Low/High Wide |
| Imaging | Standard |
| Box Dimensions | 12″H x 13″W x 17″L WT: 33.5 lbs |
| UPC | 753759123628 |
| MPN | 010-12188-20 |
| UPC / GTIN | 753759123628 |
Fitment guidance
- Pocket-mount transducers are more installation-specific and are usually chosen for high-performance or larger-vessel sonar systems.
Before you buy
Confirm the display model, sonar port, connector, hull material, mounting style, deadrise angle, and cable route before ordering. Some installs require adapters, fairing blocks, sealant, or professional installation.
What to match
Match the transducer to the sonar technology you need: traditional CHIRP, ClearVü, SideVü, Ultra High-Definition scanning, or specialized high-power offshore CHIRP.
Compare similar Garmin transducers
Use this section to compare the closest Garmin transducer options by mount style, material, connector, sonar power, and frequency range.Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz CurrentPocket mount · Plastic · Confirm connector · 3kW · 150-250kHz, 28 to 60 kHz, 150 to 250 kHz · 23°
Manufacturer resources
- Owner’s Manual (pdf)
- Brochure (pdf)
Common questions
Will this work with every Garmin unit?
No. Compatibility depends on your Garmin display, sonar port, connector, and supported sonar type.How do I choose the right tilt or deadrise?
For tilted-element thru-hull models, match the transducer angle to your hull deadrise so the sonar beam points correctly in the water.Should I confirm before ordering?
Yes. Transducers are highly installation-specific, especially thru-hull, in-hull, pocket-mount, and high-power CHIRP models.MPN: 010-12188-20 · UPC/GTIN: 753759123628View AllClose
