Garmin transducer technical fitment
Garmin B164 1kW Tilted Element 12 Degree – 8-Pin

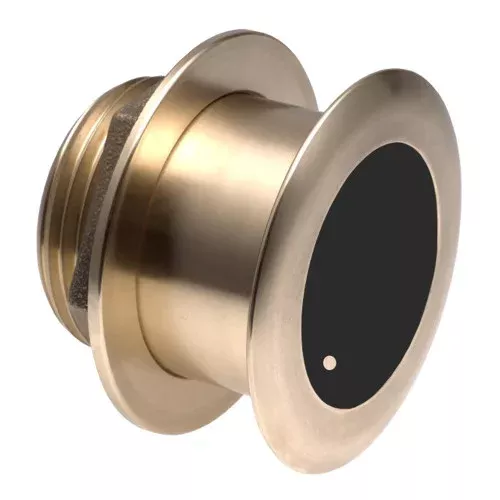

B164 1kW Tilted Element 12° – 8-Pin Garmin’s bronze, thru-hull mount transducer with 12° tilt provides depth and temperature data.
| Model | B164 |
|---|---|
| Mount Style | Thru-hull |
| Material | Bronze |
| Connector | 8-pin |
| Power | 1kW |
| Frequency / CHIRP | 200 kHz |
| MPN | B164-12-8G |
Technical specifications
| Power | 1kW |
|---|---|
| Frequency | 200 kHz |
| Tilt / Deadrise | 12° |
| Mount Style | Thru-hull |
| Material | Bronze |
| Connector | 8-pin |
| Operating Frequency | 50 or 200 kHz and mounts on a 8-15° deadrise angle |
| Speed Included | No |
| Connector Pins | 8 |
| Mounting Style | Thru-Hull |
| Imaging | Standard |
| CHIRP | No |
| Cable Length | 39′ |
| Temperature | Yes |
| Box Dimensions | 8″H x 10″W x 12″L WT: 11 lbs |
| UPC | 753759971915 |
| MPN | B164-12-8G |
| UPC / GTIN | 753759971915 |
Fitment guidance
- Thru-hull transducers should be matched to hull material, deadrise angle, installation location, and cable route before drilling or bedding the housing.
- Tilted-element models should be selected by hull deadrise so the sonar beam points straight down when the boat is floating normally.
- This listing is built around the 8-pin connector style shown in the product data. Confirm adapter needs if your Garmin unit uses a different sonar port.
Before you buy
Confirm the display model, sonar port, connector, hull material, mounting style, deadrise angle, and cable route before ordering. Some installs require adapters, fairing blocks, sealant, or professional installation.
What to match
Match the transducer to the sonar technology you need: traditional CHIRP, ClearVü, SideVü, Ultra High-Definition scanning, or specialized high-power offshore CHIRP.
Compare similar Garmin transducers
Use this section to compare the closest Garmin transducer options by mount style, material, connector, sonar power, and frequency range.Garmin B164 1kW Tilted Element 12 Degree – 8-Pin CurrentThru-hull · Bronze · 8-pin · 1kW · 200 kHz · 12°Garmin B164 1kW Tilted Element 0 – 8-PinThru-hull · Bronze · 8-pin · 1kW · 50/200 kHzGarmin B164 1kW Tilted Element 20 Degree – 8-PinThru-hull · Bronze · 8-pin · 1kW · 200 kHz · 20°Garmin B258 1kW Bronze Thru-Hull Depth/Temp w/FB – 8-PinThru-hull · Bronze · 8-pin · 1kW · 200 kHz · 0-25°
Manufacturer resources
- Owner’s Manual (pdf)
- Brochure (pdf)
Common questions
Will this work with every Garmin unit?
No. Compatibility depends on your Garmin display, sonar port, connector, and supported sonar type.How do I choose the right tilt or deadrise?
For tilted-element thru-hull models, match the transducer angle to your hull deadrise so the sonar beam points correctly in the water.Should I confirm before ordering?
Yes. Transducers are highly installation-specific, especially thru-hull, in-hull, pocket-mount, and high-power CHIRP models.MPN: B164-12-8G · UPC/GTIN: 753759971915View AllClose
