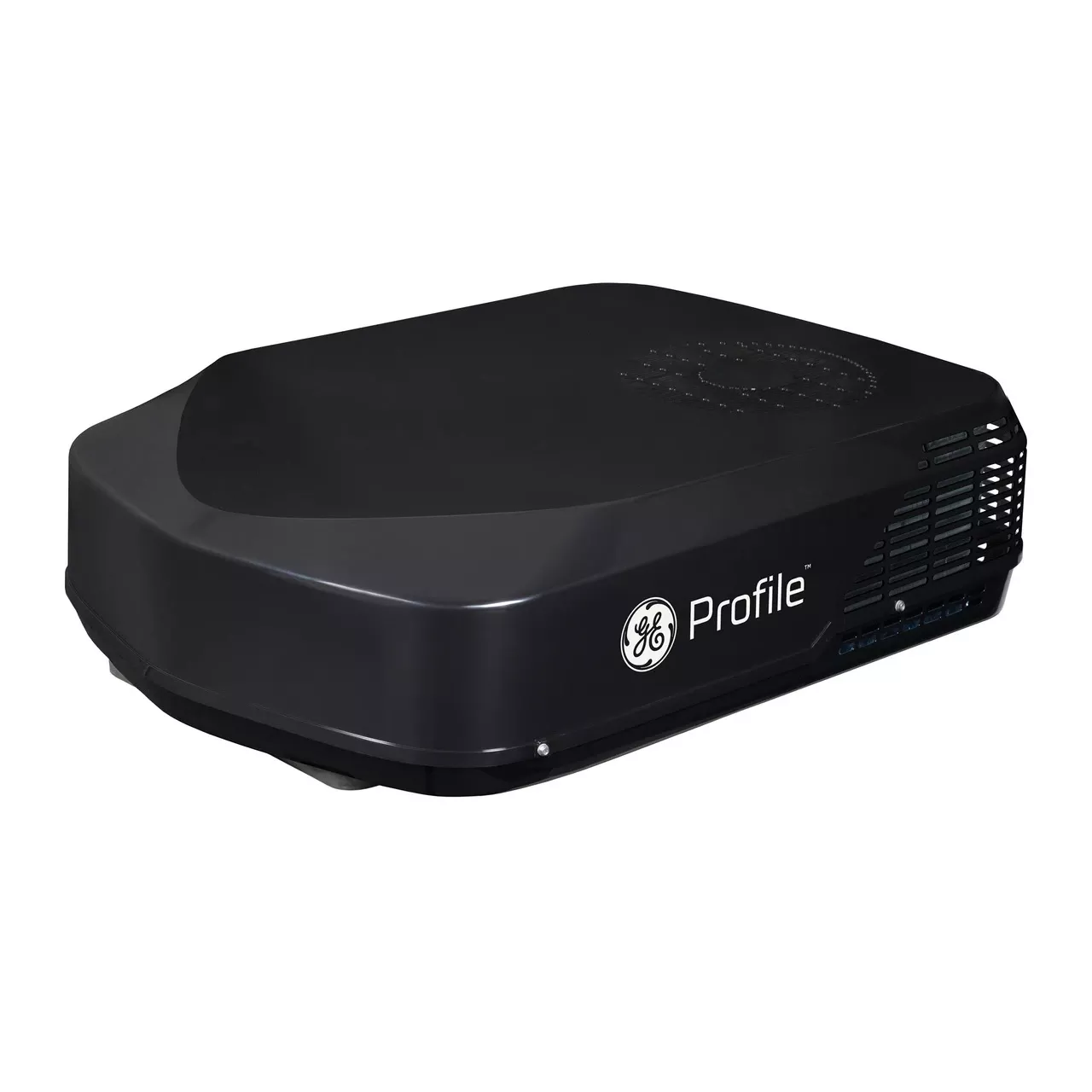

The GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) from Nomadic Supply Company® delivers powerful, quiet, all-season climate control for RV owners who demand proven comfort on the road. Backed by over 70 years of room air expertise, this low-profile rooftop unit combines a 15,000 BTU heat pump with durable, corrosion-resistant construction for year-round use in virtually any climate.Designed for rooftop installation, the PLH15 handles both cooling and heating in a single integrated system, with heat pump operation effective down to 25°F. The EZ Install control box, universal thermostat compatibility, and dual fan design simplify the upgrade from cool-only AC to a full-season heat pump system.
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Features:
-
Powerful, Reliable Cooling Performance
Over 70 years of room air comfort expertise, providing consistently comfortable temperatures.
-
Durable by Design
Features include corrosion-resistant coatings, heavy-duty motor support brackets, reinforced screw holes, and extensive vibration control testing. All models are available in black or white.
-
Quiet Operation
High-performance motor with sound-dampening rubber grommets reduces noise and vibration throughout the coach.
-
“Cool” Aerodynamic Appearance
High-grade, ultra-resistant UV coating and automotive-grade polymer shroud with a glossy, attractive appearance for years to come.
-
Easy Installation
“EZ Install” control box with flip-down design allows the wiring connections to be made easily, avoiding potential installation errors.
-
Universal Control Box and Thermostat
Upgrade from Cool Only AC to Heat Pump without the expense of changing the control box and thermostat.
-
Electronic Self Diagnostics
All wall thermostats have built-in self diagnostics, freeze prevention, and low voltage detection.
-
Ceiling Return Air Filter
Designed for easy removal for cleaning or replacement.
-
Warranty
GE Appliances provides a transferable 2 year warranty on products, parts and labor.
-
Heat Pump Model
Utilizes heat in the atmosphere to warm the coach. Reduces the need to run the furnace and extends propane usage between 19-38% at 35° outdoor temperature.* *Based on a propane furnace ranging from 20-40,000 BTU with 75% efficiency.
-
Heat Pump Operation as Low as 25° F
This feature ensures that any ice buildup on the heat exchanger is cleared by periodically cycling to Auto Defrost. With the reverse cycle defrost algorithm, the heat pump can continue to provide supplemenetal heating with outdoor temperatures as low as 25° F.
-
Heat Pump Automatic Switch-Over
This activates the furnace when the ambient temperature no longer affords Heat Pump operation. Never wake up cold in middle of the night.
-
Low Profile Shroud
3″ additional clearance in roof height.
-
Dual Fan Design
Provides ultra quiet operation
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Specifications:
Cooling:
- Cooling capacity: 15,000 Btus
- Operating range: 60F (15C) to 115F (46C)
- Typical temp reduction: 15 to 25 degrees
Heating:
- Operating range: 25F (-4C) to 85F (30C)
Dimensions & Fit:
- Overall dimensions: 40″ long x 30″ wide x 11″ tall
- Roof opening required: 14-3/8″ x 14-3/8″
- Roof thickness supported: 2″ to 6″
- Weight: 100 lbs
Electrical Requirements:
- 115V/60 Hz
- 20-amp circuit
Refrigerant:
- R32
Color:
- Black
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Warranty:
- 2-Year limited
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Installation Requirements:
This unit requires additional components for a complete installation, sold separately. Required accessories vary by ceiling configuration:
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Installation:
- Non-Ducted Ceiling Assembly (RAREN1A)
- Main Electronic Control Unit (RARMC2A)
- Wall Thermostat (RARWT2W)
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Installation:
- Ducted Ceiling Assembly (RARED1A)
- Main Electronic Control Unit (RARMC2A)
- Wall Thermostat (RARWT2W)
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Documents:
GE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Owner’s ManualGE Profile PLH15 115V 15,000 BTU RV Air Conditioner w/ Heat Pump (Black) (PLHS15XAHB) Installation Manual
