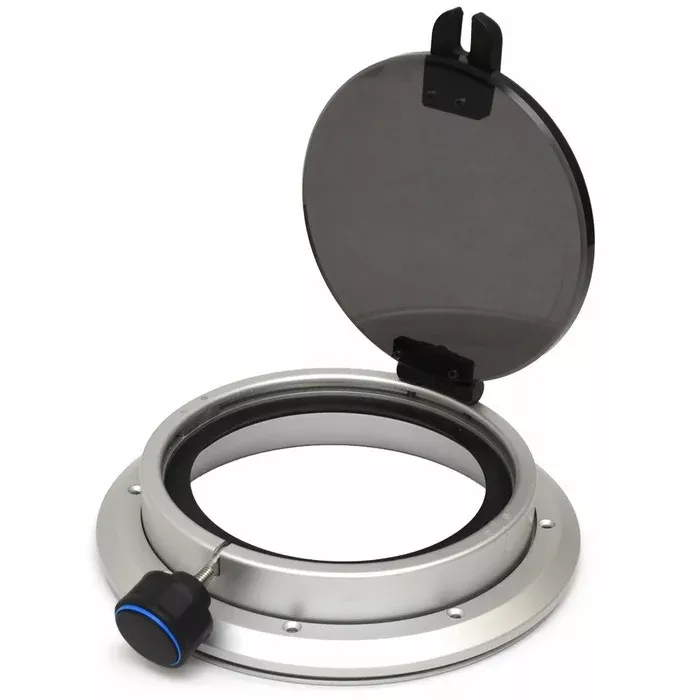

Boat part number 1115577 is a new portlight window from Gebo, part number 81.00.81.00.
This portlight window is constructed out of anodized aluminum with a smoke gray acrylic window. It measures approximately 8 5/8″ Dia. x 1 7/8″ D overall with a 6 1/8″ Dia. x 3/8″ D window and a 5 1/4″ Dia. opening. Mounts in a 7″ Dia. cutout with (8) 3/16″ Dia. holes set apart 3 1/4″ center to center.
Specifications:
- Part Manufacturer: Gebo
- Part Number: 81.00.81.00
- Material: Aluminum / Acrylic
- Color: Silver / Smoke Gray
- Finish: Anodized
- Overall Dimensions: 8 5/8″ Dia. x 1 7/8″ D
- Window Dimensions: 6 1/8″ Dia. x 3/8″ D
- Opening Dimensions: 5 1/4″ Dia.
- Cutout Dimensions: 7″ Dia.
- Mounts: (8) 3/16″ Dia. holes set apart 3 1/4″ CTC
