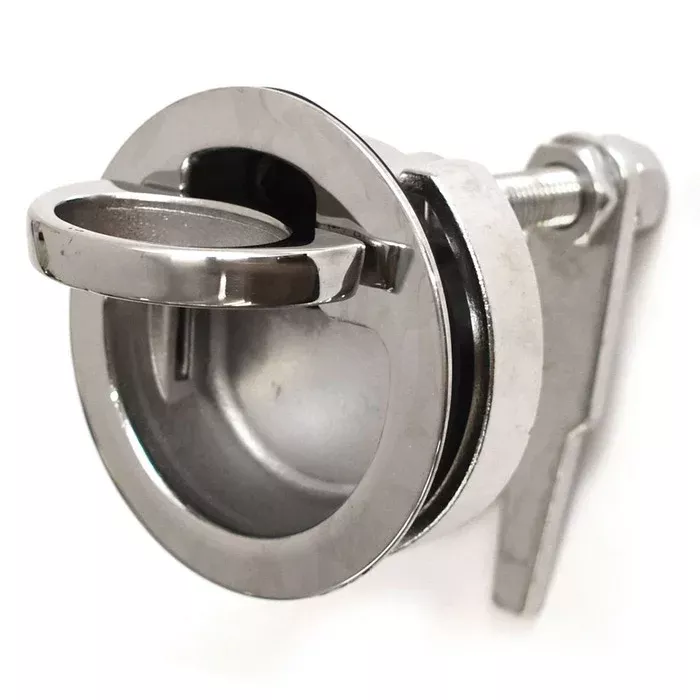

Boat part number 8403226 is a new non-locking latch from Gemlux, part number unavailable. Commonly used on MasterCraft boats, part number 530081 . May be used on other boats.
This non-locking latch is constructed out of silver colored stainless steel with a polished finish. Measures approximately 3 1/2″ L x 3″ OD overall. The manufacturer calls this a 2.5″ latch, we measure the cutout to be approximately 2 3/8″ Dia. with a 1/2″ panel thickness. See photos for detailed measurements. Features lift-and-twist non-locking handle and cam.
Specifications:
- Boat Manufacturer: MasterCraft
- Model/Year: Unavailable
- Part Number: 530081
- Part Manufacturer: Gemlux
- Part Number: Unavailable
- Material: Stainless Steel
- Color: Silver
- Finish: Polished
- Max Thru Hull Thickness: 1/2″
- Flange: 3″
- Overall Dimensions: 3 1/2″ L x 3″ OD
- Cutout: 2 3/8″ Dia.
- Manufacturer Size: 2.5″
