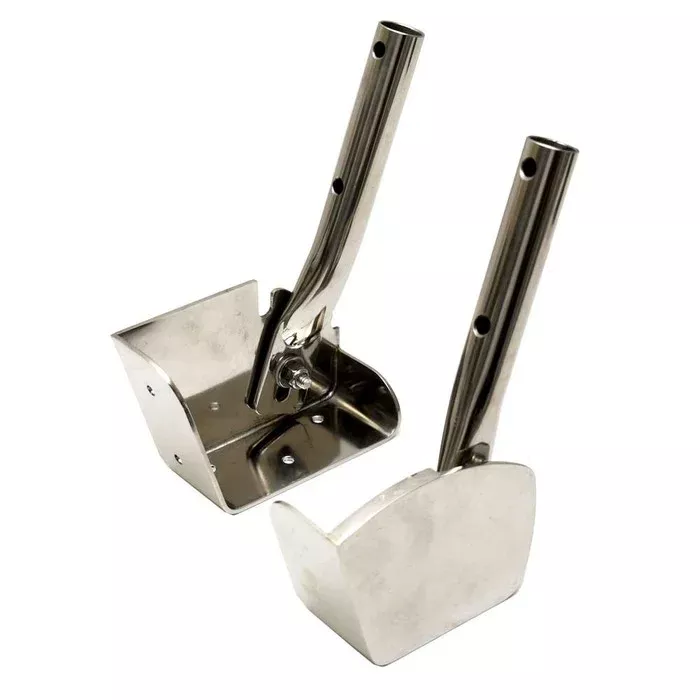

Boat part number 7200530 is a new set of (2) flip flop seat brackets from GG Schmitt & Sons, part number 22835 . Commonly used on 226 SSi model Chaparral Boats, part number 31.00106, but may be used on other boats.
Constructed out of stainless steel, these brackets feature (3) locking positions for easy use.
Approximate Measurements:
- Bracket 1: 9 1/2″ H x 4 3/8″ L x 3 3/8″ W
- Bracket 2: 9″ H x 6″ L x 2 1/4″ W
- Bracket 1 Mount: (4) 1/4″ Dia. Holes Set 2 1/2″ x 1″ x 1 1/4 Center to Center
- Bracket 2 Mount: (5) 1/4″ Dia. Holes Set 3″ x 1 3/4″ and 3″ Center to Center
- Post Size: 1″ OD
- Posts Mounts: (2) 5/16″ Dia. Holes Set 3″ Center to Center
Sold as a set of 2.
Specifications:
- Boat Manufacturer: Chaparral Boats
- Model: 226 SSi
- Part Number: 31.00106
- Part Manufacturer: GG Schmitt & Sons
- Part Number: 22835
- Material: Stainless Steel
- Finish: Polished
- Post Size: 1″ OD
