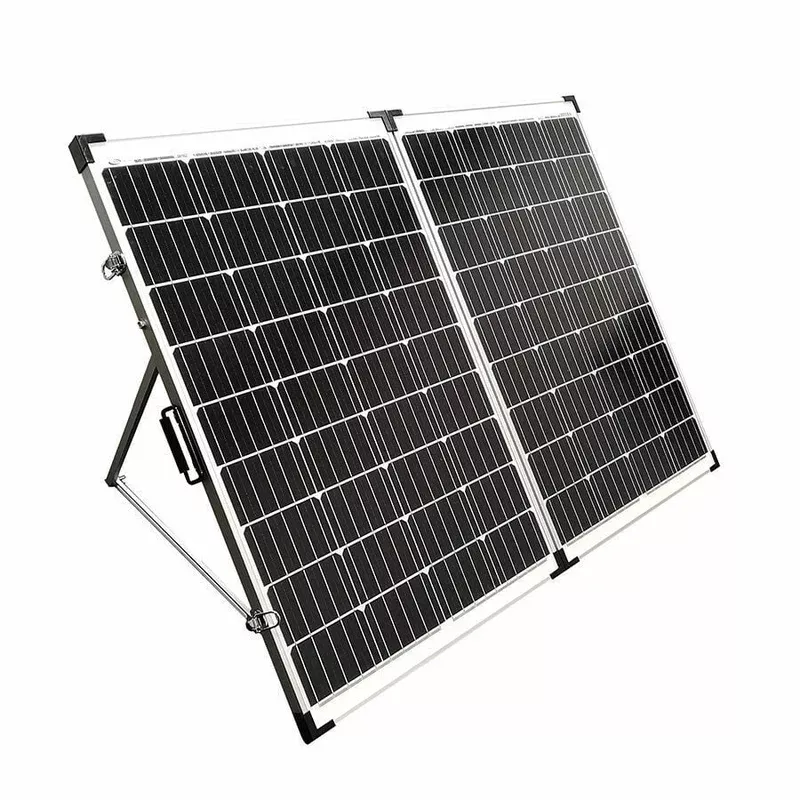

The Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) fromNomadic Supply Company® is perfect for those of you who don’t want to permanently mount solar to a rooftop or want to supplement your existing roof top solar panel system. The Anderson-style battery charging connectors allow you to quickly interchange the charging accessory to best suite your needs – from maintaining your camper van or trailer battery while on the road to trickle charging your car, ATV or boat battery. Adjustable folding legs to maximize solar exposure and for compact easy storage. Multiple charging connectivity options. Includes a heavy-duty nylon case for storage protection. The Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) is are a great supplemental solar kit to a roof top kit.
Included with the Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200):
- 30 amp, single bank, charge controller (GP-PWM-30-SB)
- Battery clamps
- Quick connectors
- Ring terminal connectors
- SAE solar plug adapter
- XLR-style solar plug adapter
- 12′ of UV 12/2 cable
- Heavy-duty, nylon storage case
Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) Specifications:
Portable Solar Panel Kit Spec Comparison
| GP-PSK-200 | GP-PSK-130 | GP-PSK-90 | |
|---|---|---|---|
| Solar cell type | Monocrystalline | Monocrystalline | Monocrystalline |
| Output power | 200 W | 130 W | 90 W |
| Rated current | 11.4 A | 6.7 A | 4.6 A |
| Rated DC voltage | 17.6 V | 19.7 V | 19.8 V |
| Open-circuit voltage | 21.1 V | 23.8 V | 23.6 V |
| Connectivity | Battery clamps, Quick connectors, Ring terminal connectors,SAE solar plug adapter, XLR-style solar plug adapter | ||
| Solar controller | 30-amp Single Bank | 10 A, PWM, built-in | |
| Frame type | Silver anodized aluminum frame, built-in adjustable folding legs | ||
| Certifications | CE | ||
| Rated | IP52 | ||
| Dimensions Closed (H x W x D) | 39 x 26.4 x 5.6 in / 1005 x 670 x 70 mm | 32.5 x 19.9 x 2.8 in / 824 x 503 x 70 mm | 21.7 x 19.9 x 2.5 in / 550 x 505 x 65 mm |
| Dimensions (open) | 39 x 52.8 x 2.8 in / 1005 x 1340 x 70 mm | 32.5 x 39.8 x 1.4 in / 824 x 1006 x 33 mm | 21.7 x 39.8 x 1.3 in / 550 x 1010 x 33 mm |
| Weight | 51 lbs / 23 kg | 33 lbs / 15 kg | 19.8 lbs / 9 kg |
| Warranty | 25 years (module) / 3 years (controller) |
Controller Specifications
| GP-PWM-30-SB | |
| Nominal System Voltage | 12V |
| Max. Solar panel input voltage | 28V |
| Operating Consumption | 6mA |
| Display Consumption | 15mA |
| Temp. Compensation | -13mV/ºF / – 24mV/ºC |
| Operating Temperature | – 40 to 185ºF / – 40 to 85ºC |
| Humidity | 99% N.C. |
| Dimensions (H x W x D): | 4.25 x 7.48 x 1.38 in; 108 x 190 x 35 mm |
| Weight | 10.6 oz; 300 g |
| Maximum Wire Gauge: | 4 AWG |
| Protection | Battery Reverse Polarity, Solar Array Reverse Polarity, Over temperature, Over Current |
| Rated | IP50 |
Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) FAQ:
Is this kit waterproof? This kit is not waterproof or weatherproof. Never leave your Portable Solar Panel Kit unattended, plugged in overnight, or subject to inclement weather.What is included in this kit? This kit includes: – 10 amp charge controller (GP-PWM-10-FM)- Battery clamps- Quick connectors- Ring terminal connectors- SAE solar plug adapter- XLR-style solar plug adapter- 12′ of UV 12/2 cable- Heavy-duty, nylon storage case
Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) Documents:
Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) User Manual (GP-PSK-200)Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) Spec Sheet (GP-PSK-200)Go Power! 200 Watt Portable Solar Panel Kit (GP-PSK-200) Solar Controller User Manual (GP-PWM-30-SB)
