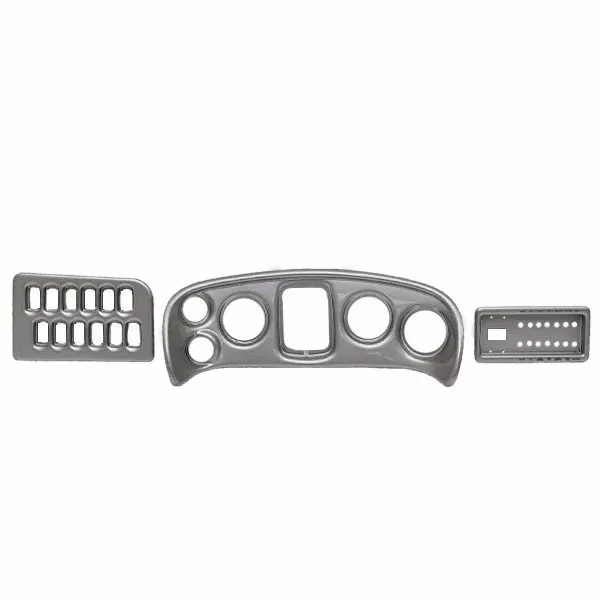

Boat part number 1062701 is a new blank dash panel set for a Godfrey Aqua Patio pontoon boat, part number 184542 . Manufactured by Jet Technologies, part number 5943-KIT .
This kit includes the following:
- (1) Blank Switch Panel
- (1) Blank Gauge Panel
- (1) Blank Console Breaker Panel
Each of these panels are constructed out of silver colored marine grade plastic with a brushed finish.
Switch Panel
Measures approximately 11 3/8″ L x 6 3/4″ H overall and uses (4) 1/8″ dia. threaded mounting bolts. Features (12) 7/8″ L x 1 1/2″ H cutouts.
Gauge Panel
Measures approximately 22 5/8″ L x 7 1/2″ H overall and uses (10) 1/8″ dia. threaded mounting bolts. Features (2) 2″ Dia., (3) 3 3/8″ Dia. and (1) 3 3/4″ W x 5 1/8″ H cutouts.
Console Breaker Panel
Measures approximately 9 1/2″ L x 4 5/8″ H overall and uses (4) 1/8″ dia. threaded mounting bolts.
This panel features (1) 1 1/2″ L x 7/8″ H and (14) 3/8″ Dia. cutouts labeled as follows:
- Horn
- Nav
- Dock
- CTSY
- Floor
- Stereo
- 12VDC
- Depth
- INT
- ACC / Water
- ACC / L/W
- ACC / Switch
- ACC / Sub
- Master
Sold as a set of 3.
Specifications
- Boat Manufacturer: Godfrey Pontoons
- Model: Aqua Patio
- Year: Unavailable
- Part Number: 184542
- Part Manufacturer: Jet Technologies
- Part Number: 5943-KIT
- Material: Marine Grade Plastic
- Color: Silver
- Finish: Brushed
- Mounts: 1/8″ Dia. Threaded Bolts
