Boat part number 1008701 is a new old stock breaker panel from Godfrey Pontoon Boats. Part number unavailable.

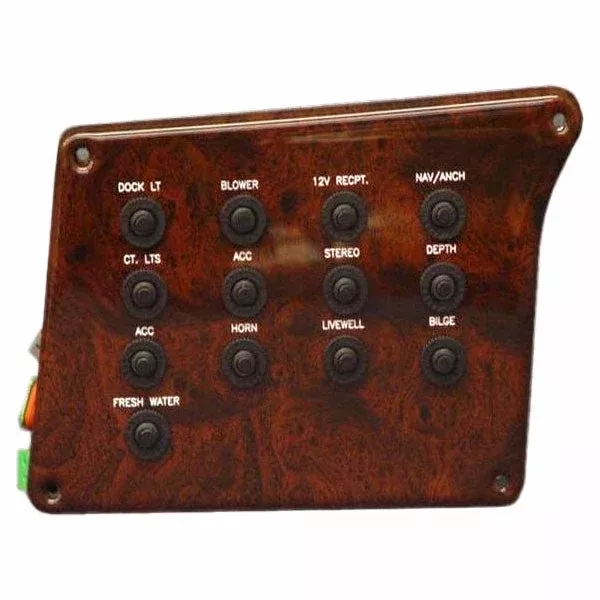

This breaker panel is constructed out of marine grade plastic with a woodgrain pattern. It measures approximately 8 1/4″ W (tapering to 8″) x 5 7/8″ H overall. Mounts with (4) 3/16″ dia. holes set in each corner and uses (1) 12-pin Deutsch and (2) 2-pin Deutsch connections.
This panel features (13) push-to-reset breakers labeled as follows:
- 15 Amp | Dock LT.
- 4 Amp | Blower
- 10 Amp | 12V Recpt.
- 5 Amp | Nav / Anch
- 5 Amp | Ct. LTS
- 15 Amp | ACC
- 5 Amp | Stereo
- 5 Amp | Depth
- 10 Amp | ACC
- 10 Amp | Horn
- 5 Amp | Livewell
- 4 Amp | Bilge
- 10 Amp | Fresh Water
Please check with your local Godfrey dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Godfrey Pontoons
- Model/Year: Unavailable
- Material: Marine Grade Plastic
- Color: Woodgrain
- Overall Dimensions: 8 1/4″ W (tapering to 8″) x 5 7/8″ H
- Mounts: (4) 3/16″ Dia. Holes Set in Each Corner
- Connections: (1) 12-Pin Deutsch | (2) 2-Pin Deutsch
