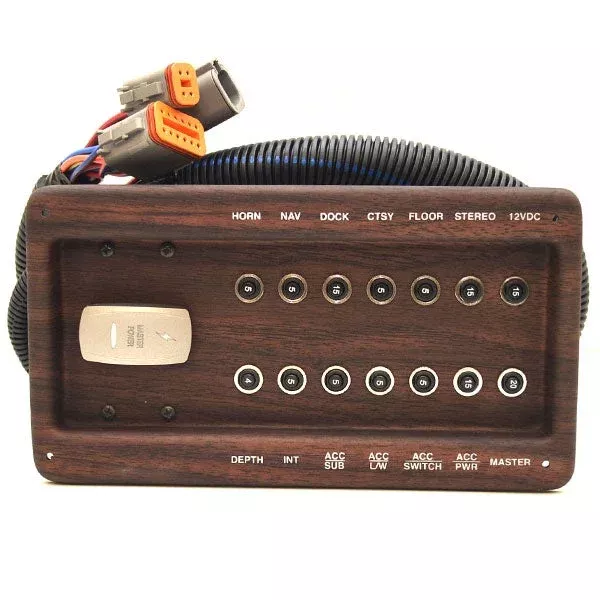

Boat part number 1071792 is a new breaker switch panel for a 2014 Aqua Patio model Godfrey Pontoon Boat, part number 287648 . Manufactured by Jet Technologies, part number 9524-J235M .
Constructed out of faux cherry woodgrain colored marine grade plastic with a matte finish. Measuring approximately 9 1/4″ W x 5 1/8″ H overall, with (4) approximately 1/8″ Dia. mounting holes around perimeter, spaced 8 3/8″ apart center on center.
This panel host the following push-to-reset breakers:
- Horn (5A)
- NAV (5A)
- Dock (15A)
- CTSY (5A)
- Floor (5A)
- Stereo (15A)
- 12VDC (15A)
- Depth (4A)
- INT (5A)
- ACC / SUB (5A)
- ACC / L/W (5A)
- ACC / Switch (5A)
- ACC / PWR (15A)
- Master (20A)
Panel Connection:
- (1) 2 Pin Female Connector
- (1) 4 Pin Female Connector
- (1) 12 Pin Female Connector
- (1) 4 Pin Male Connector
Includes the following rocker switch:
- (1) Master Power | On/Off Rocker Switch
Specifications:
- Boat Manufacturer: Godfrey Pontoon
- Model: Aqua Patio
- Year: 2014
- Part Number: 287648
- Part Manufacturer: Jet Technologies
- Part Number: 9524-J235M
- Material: Plastic
- Color: Faux Cherry Woodgrain
- Finish: Matte
- Overall Dimensions: 9 1/4″ W x 5 1/8″ H
- Mounts: (4) 1/8″ Dia. Holes
- Connection: (1) 2 Pin Female Connector / (1) 4 Pin Female Connector / (1) 12 Pin Female Connector / (1) 4 Pin Male Connector
