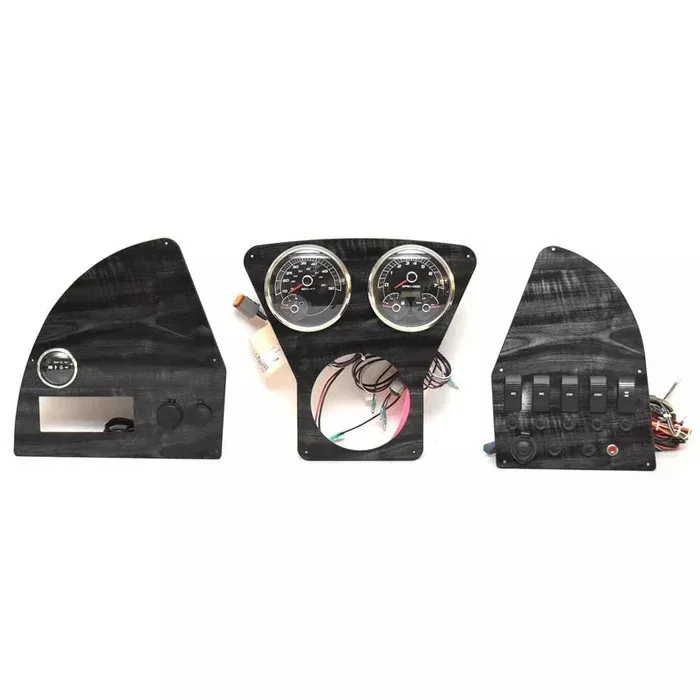

Boat part number 1100873 is a new OEM 3-piece dash panel kit for 2021 Sweetwater Sunrise Godfrey Pontoon Boats, part number 471101 .
Kit includes the following:
- (1) Gauge Panel | P/N: 73654
- (1) Port Switch Panel
- (1) Starboard Switch Panel | P/N: 72521
Gauge Panel
This panel is constructed out of gray faux woodgrain colored plastic with a glossy finish. Features (1) 5 3/8″ Dia. steering cutout.
- Overall Dimensions: 12 1/2″ W x 12 1/8″ H
- Mounts: (4) 1/8″ Dia. mounting holes
This panel has (2) pre-installed multi-function gauges from Faria. Each clear halogen illuminated gauge has a domed lens, silver colored bezel, black and graphite face, red needles, and white graphics. They also feature red through-dial lighting.
This panel features the following gauges:
- Speedometer / Volt Meter | P/N: GSC108A | (1) pitot
- Tachometer / Fuel Level / Trim | P/N: GTC086A | Gasoline | Honda | 4/6/8/10/12 cycle inboard, 4/6/8/10/12 pole outboard
Port Switch Panel
This panel is constructed out of gray faux woodgrain colored plastic with a glossy finish.
- Overall Dimensions: 12″ W x 12 1/8″ H
- Mounts: (5) 1/8″ Dia. mounting holes
This panel has (1) pre-installed systems check gauge from Faria, part number GPK615B . It has a domed lens, silver colored bezel, black face, and white graphics.
This panel also features the following:
- (1) 5 1/4″ W x 2″ H blank radio cutout
- (1) Dual USB female receptacle
- (1) Female AUX receptacle
Starboard Switch Panel
This panel is constructed out of gray faux woodgrain colored plastic with a glossy finish.
- Overall Dimensions: 8 3/4″ W x 12″ H
- Mounts: (5) 1/8″ Dia. mounting holes
This panel features the following:
- (2) Accessory Red Illuminated Rocker Switch | ON/OFF
- (1) Courtesy Lights Red Illuminated Rocker Switch | ON/OFF
- (1) Stereo Red Illuminated Rocker Switch | ON/OFF
- (1) Navigation/Anchor Lights Red Illuminated Rocker Switch | ON/OFF/ON
- (6) Push-to-Reset Breaker Switches
- (1) 12V Receptacle
- (1) Horn Red Push Button Switch | Momentary ON/OFF
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Godfrey
- Model: Sweetwater Sunrise
- Year: 2021
- Part Number: 471101
- Part Manufacturer: IMP
- Part Number: 15180
- Material: Plastic
- Color: Gray Faux Woodgrain
- Finish: Glossy
- Fuel: Gasoline
- Set Up For: 4/6/8/10/12 cycle inboard, 4/6/8/10/12 pole outboard
- Engines: Honda
