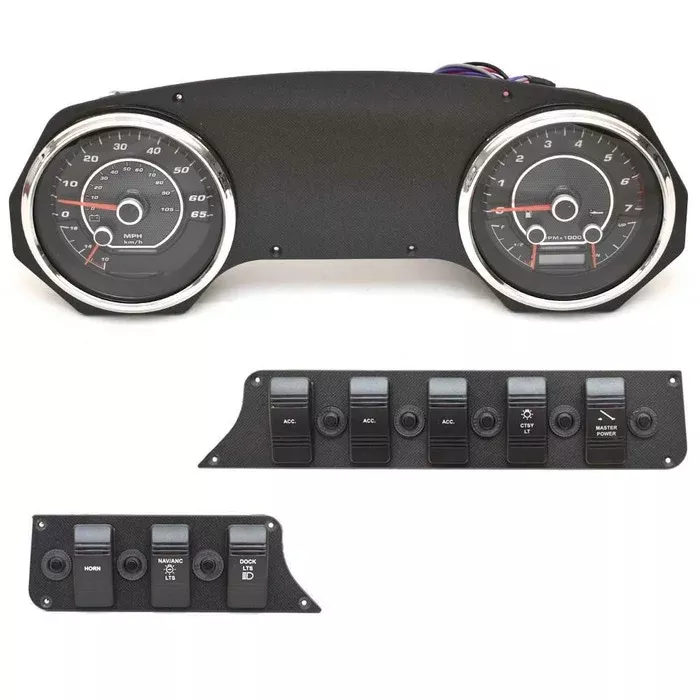

Boat part number 1105455 is a new 3-piece dash panel kit for Sweetwater model Godfrey Pontoon Boats, part number 485235 . Manufactured by IMP, part number 5001448 .
Kit includes the following:
- (1) Instrument Panel
- (1) Port Switch Panel
- (1) Starboard Switch Panel
Instrument Panel
This panel is constructed of gray colored plastic with a glossy finish and fine black grid pattern. Measures approximately 15″ W x 5 5/8″ H overall.
This panel has (2) pre-installed oversized gauges from Faria. Each gauge has a domed lens, silver colored bezel, black and gray face, red-orange needles, and white graphics. The tachometer features a digital hour meter display.
This panel features the following gauges:
- (1) Speedometer | Voltmeter | P/N: GSC106A | 10 – 18V | 60 MPH
- (1) Multi-Function | Tachometer | Fuel | Trim | P/N: GTC089A | Gasoline | 33-240Ω (Ohms) | 4/6/8 cylinder, 4/6/8/10/12 pole | Set up for: Mercury Engines
Port Switch Panel
This panel is constructed of gray colored plastic with a glossy finish and fine black grid pattern. Measures approximately 7″ W x 2 1/4″ H overall and mounts with (4) 1/8″ Dia. mounting holes.
This panel features the following pre-installed red illuminated rocker switches:
- (1) Horn | Momentary ON/OFF
- (1) NAV/ANC Lights | ON/OFF/ON
- (1) Dock Lights | ON/OFF
- (3) Push-to-Reset Breakers
Starboard Switch Panel
This panel is constructed of gray colored plastic with a glossy finish and fine black grid pattern. Measures approximately 11″ W x 2 1/4″ H overall and mounts with (4) 1/8″ Dia. mounting holes.
This panel features the following pre-installed red illuminated rocker switches:
- (1) Navigation/Anchor Lights | ON/OFF/ON
- (1) Courtesy Lights | ON/OFF
- (2) ACC | ON/OFF
- (1) ACC | ON/OFF/ON
- (1) Master Power | ON/OFF
- (5) Push-to-Reset Breakers
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Godfrey Pontoon Boats
- Model: Sweetwater
- Part Number: 485235
- Part Manufacturer: IMP
- Part Number: 5001448
- Material: Plastic
- Color: Gray / Black
- Finish: Glossy
- Fuel Type: Gasoline
- Engines: Mercury engines
