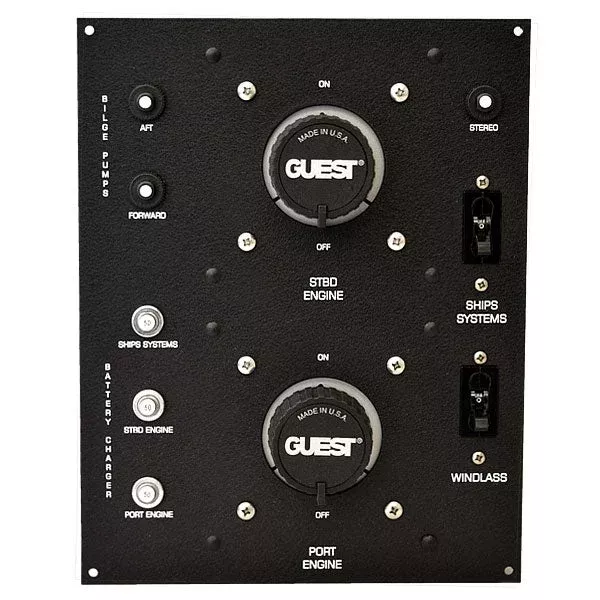

Boat part number 8202470 is a new OEM battery switch panel for a Four Winns 378 Vista model Boat, part number 025-3107 . Manufactured by Portage Wiring Systems, part number unavailable.
This battery panel is constructed out of black powdered coated aluminum with a satin finish. Panel measures approximately 9″ W x 11 1/2″ H overall. There are (4) approximate 1/8″ Dia. mounting holes spaced 8 1/2″ apart center to center.
Switch panel host the following items:
- Bilge Pumps | AFT / Forward (Reset-Push-Button Breakers)
- Battery Charger | Ships Systems (50A Push-Button Breaker ) / STBD Engine (50APush-Button Breaker) / Port Engine (50A Push-Button Breakers)
- Ships Systems | On/Off (Switch Breaker)
- Windlass | On/Off (Switch Breaker)
- STBD Engine | On/Off (Guest Selector Switch)
- Port Engine | On/Off (Guest Selector Switch)
- Stereo | (Reset-Push-Button Breakers)
- (2) 230 AMPS Guest Selector Switches – Model 2112A
Connection:
- (1) 2 Pin Female Connector
- (1) 3 Pin Male Connector
Specifications:
- Boat Manufacturer: Four Winns
- Model: 378 Vista
- Part Number: 025-3107
- Material: Aluminum
- Color: Black
- Finish: Satin
- Overall Dimensions: 9″ W x 11 1/2″ H
- Mounts: (4) 1/8″ Dia.
