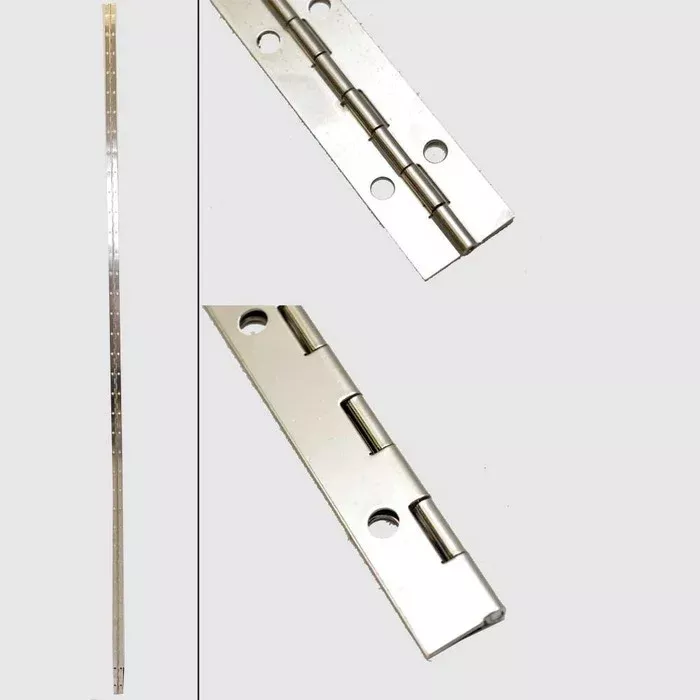

Boat part number 1081534 is a new piano hinge from Hafele, part number 351.09.613 .
This piano hinge is constructed out of 18 gauge 304 grade stainless steel with a bright annealed finish for a shinier, decorative look. It measures approximately 1″ W x 72″ H overall when open, and approximately 3/8″ W when folded. Has a pin diameter of approximately 3/16″ Dia. There are (36) 3/16″ Dia. mounting holes (hardware not included).
Specifications:
- Part Manufacturer: Hafele
- Part Number: 351.09.613
- Material: Stainless Steel
- Color: Silver
- Finish: Bright Annealed
- Pin Diameter: 3/16″ Dia.
- Overall Dimensions: 1″ W x 72″ H (3/8″ W folded)
- Mounts: (36) 3/16″ Dia. mounting holes
