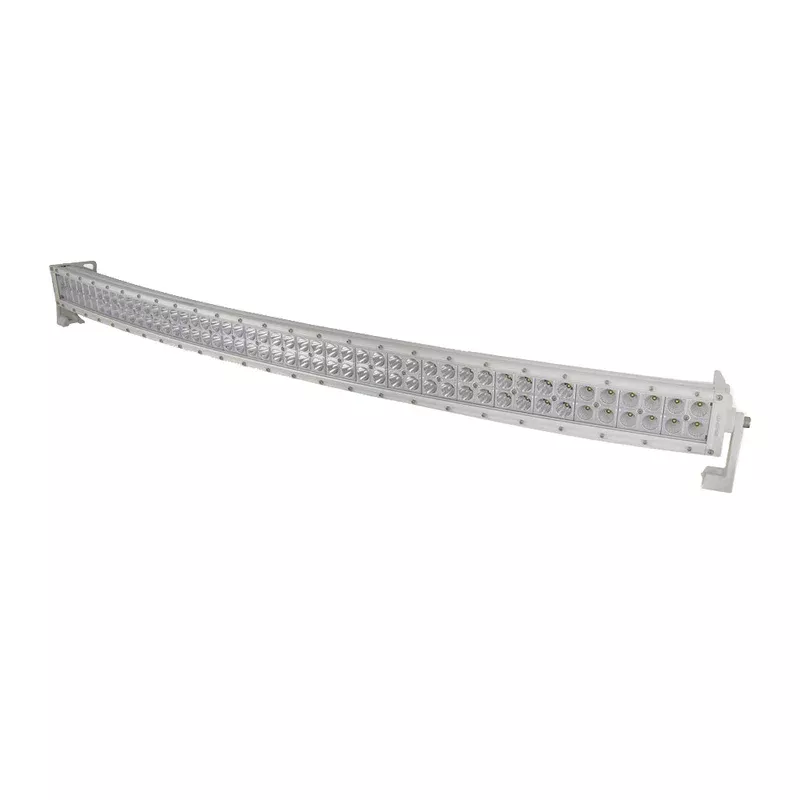

HEISE Dual Row Marine Curved LED Light Bar – 42″ — Product
Dual Row Marine Curved LED Light Bar – 42″Specs
- Input Voltage: 10-30V DC
- Wattage: 240 W
- (80-3WCREELEDs)
- Raw Lumens: 19200
- LUXat 10M: 780
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
- Housing Material: Die-Cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore®
- Lens Material: PC
- Mounting Bracket: Die-Cast Aluminum
- Hole Dimensions:
- Brackets Turned Inward – 41 inches
- Brackets Turned Outward – 43.5 inches
- Mounting Bolt Drill – 25 inches
- Height of Light Bar Itself: 3 inches
- Depth of Light Bar Itself: 3.5 inches
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
Operation
- Operating Temperature: – 40 degrees C to +60 degrees C
- Current Consumption: 12 Amps at 13.8 Volts
- IP Rating: IP67
- Protections: Reverse Polarity
Heise’s 42-inch curved double row light bar for boats. This top product is professionally manufactured in accordance with strict industry standards and incorporates a well-balanced…
SKU: NVN-69773
MPN: HE-MDRC42
UPC: 086429348282
