Boat part number 7103096 is a new red LED courtesy light from Hella Marine, part number 2XT 980 507-241 . Commonly used on Ranger Boats, part number 209824 , but may be used on other boats.
Per Manufacturer:
Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure. Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

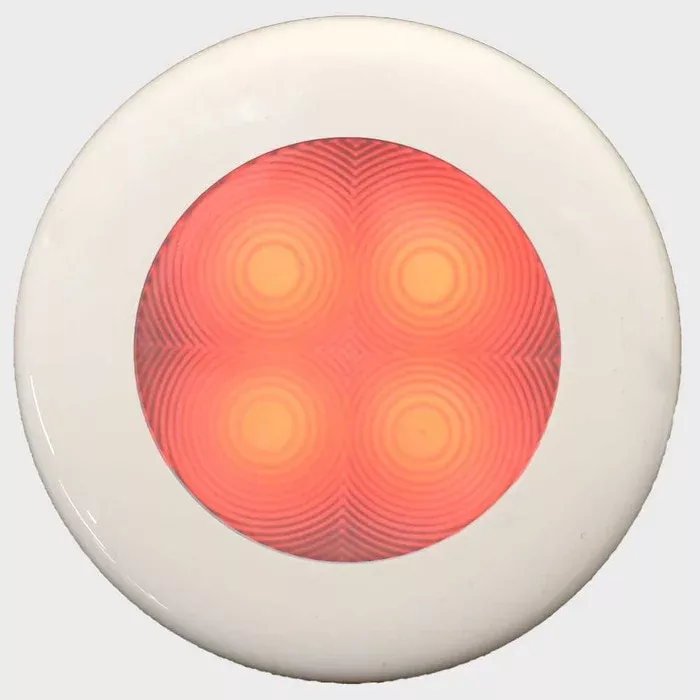

This LED courtesy light has a red LED light with a white plastic bezel. It measures approximately 3″ Dia. x 7/8″ D and requires an approximate 2″ Dia. cutout. There are (3) 1/8″ Dia. mounting holes and (2) wire leads.
Specifications:
- Boat Manufacturer: Ranger Boats
- Part Number: 209824
- Part Manufacturer: Hella Marine
- Part Number: 2XT 980 507-241
- Color: White
- LED Color: Red
- Rating: 12 V
- Overall Dimensions: 3″ Dia. x 7/8″ D
- Cutout: 2″ Dia.
- Mounts: (3) 1/8″ Dia. Holes
- Connection: (2) Wire Leads
