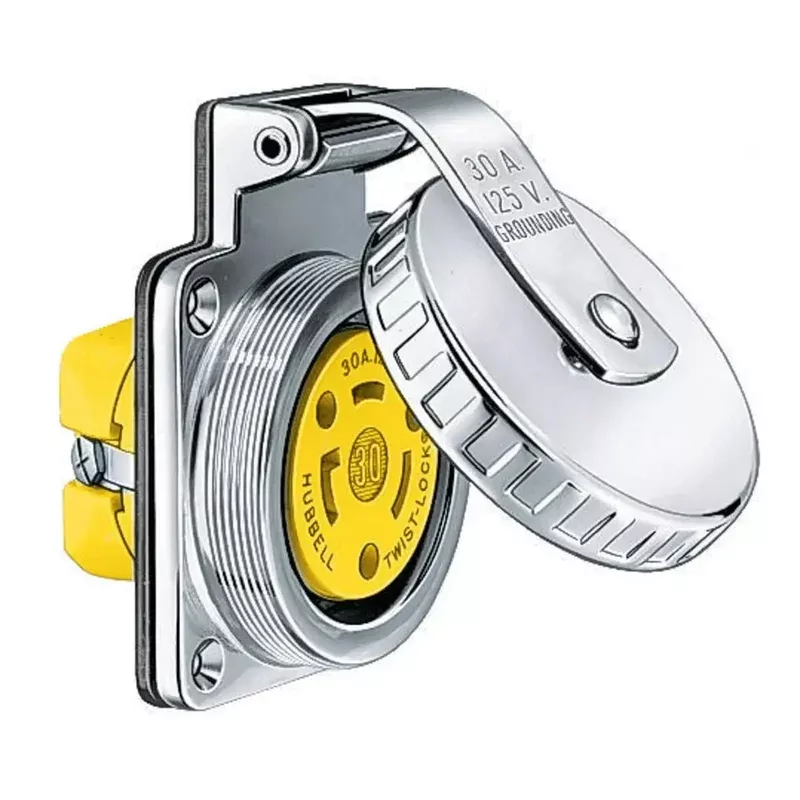

Traditional Stainless steel power outlet has gasketed, self-closing cover,watertight when cover is screwed in place. Mounting holes are 2 3/8″ (60.3) on centers. Mounting screws and gasket included.Hubbell HBL303SSO 125 Volt 30A Stainless Steel Marine Hull Outlet Locking Devices, Twist-Lock®, Marine Grade, Hull Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Stainless Steel
Hubbell HBL303SSO 125 Volt 30A Stainless Steel Marine Hull Power Outlet Features:
- New quick connect with backwards compatibility
- Corrosion Resistant
Hubbell HBL303SSO 125 Volt 30A Stainless Steel Marine Hull Outlet Specifications:
| Application | Marine Wiring Devices |
| Color | Metallic |
| Environmental Conditions | Weather Resistant |
| Item Type | Single |
| Material | Stainless Steel, Composite |
| Material – Mounting Hardware | Screw Mounting |
| Number Of Poles | 2-Pole |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Environmental – Moisture Resistance – IP56 Suitability |
| UPC | 783585040677 |
Dimensions
| Display Size | Standard Sized Product |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Screw Terminals |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Phase | Single Phase |
| Voltage Rating | 125 VAC |
| Wattage | 3750 |
Conductor Related
| Number Of Wires | 3-Wire Grounding |
| Wire Size | 10 AWG |
Certifications and Compliance
| Industry Standard(s) | UL Listed |
| Nema Rating | L5-30R |
