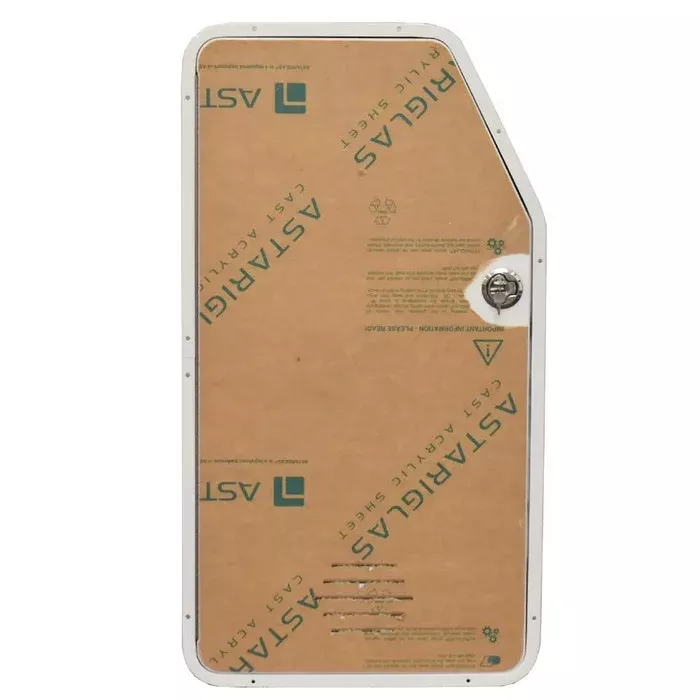

Boat part number 1101457 is a new access door for a CC 21 OB model Hurricane boat, part number 416789 . Manufactured by Jet Technologies, part number 10345-7508 .
This access door is constructed out of white acrylic with an aluminum frame. Measures approximately 40 1/8″ H x 21 3/4″ W (tapers to 16 1/2″ W) overall. Features (1) locking latch with keys included. Mounts via (11) 1/4″ Dia. holes set around the perimeter.
Approximate Measurements:
- Overall: 40 1/8″ H x 21 3/4″ W (Tapers to 16 1/2″ W)
- Cutout: 38 3/4″ H x 20 1/4″ W (Tapers to 15 1/4″ W)
- Opening: 37 1/4″ H x 18 3/4″ W (Tapers to 13 3/4″ W)
Note: Contains a protective covering designed to be removed after installation.
Please check with your local boat Hurricane dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Hurricane
- Model: Center Console 21 OB
- Year: Unavailable
- Part Number: 416789
- Part Manufacturer: Jet Technologies
- Part Number: 10345-7508
- Material: Acrylic | Aluminum (Frame)
- Color: White
- Overall Dimensions: 40 1/8″ H x 21 3/4″ W (Tapers to 16 1/2″ W)
- Cutout: 38 3/4″ H x 20 1/4″ W (Tapers to 15 1/4″ W)
- Mounts: (11) 1/4″ Dia. Holes Set Around The Perimeter
