Boat part number 1097426 is a new 10-piece dash panel kit for 191 / 192 OB SunDeck Sport Hurricane Boats, part number 447624A .

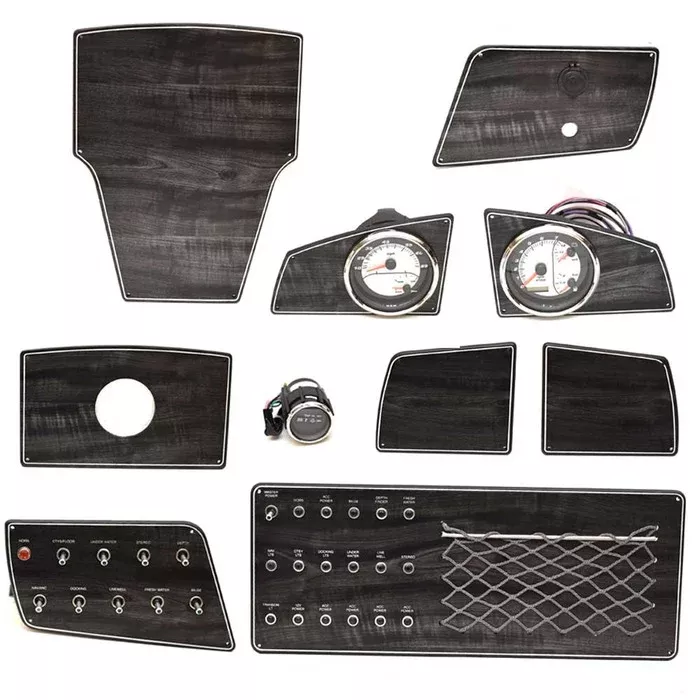

Kit includes the following:
- (1) Breaker Panel with Storage Net
- (1) Toggle Switch Panel
- (1) Starboard Multi-Function (Tachometer / Volt / Fuel) Gauge Panel
- (1) Port Multi-Function (Speedometer / Trim) Gauge Panel
- (1) Ignition Switch Panel
- (1) Port / Starboard Blank Panel Set
- (1) Blank Steering Helm Panel
- (1) MA100 Stereo Panel
- (1) Systems Check Gauge | P/N: GKP615A
Breaker Panel with Storage Net
This breaker panel with storage net is constructed out of dark gray faux woodgrain patterned plastic.
- Overall Dimensions: 20″ L x 8″ H
- Mounts: (4) 3/16″ Dia. mounting holes
This panel features the following pre-installed black breaker switches:
- (1) HORN
- (5) ACC POWER
- (1) BILGE
- (1) DEPTH FINDER
- (1) FRESH WATER
- (1) NAV LTS
- (1) COURTESY LTS
- (1) DOCKING LTS
- (1) UNDERWATER
- (1) LIVEWELL
- (1) STEREO
- (1) TRANSOM LT
- (1) 12V POWER
It also features the following:
- (1) MASTER POWER | Toggle Switch | ON/OFF
- (1) Gray Storage Net | 10 1/2″ L x 4 1/2″ H
Toggle Switch Panel
This toggle switch panel is constructed out of dark gray faux woodgrain patterned plastic.
- Overall Dimensions: 10 3/8″ L x 6″ H
- Mounts: (4) 3/16″ Dia. mounting holes
This panel features the following pre-installed illuminated toggle switches:
- (1) COURTESY/FLOOR | ON/OFF
- (1) UNDER WATER | ON/OFF
- (1) STEREO | ON/OFF
- (1) DEPTH | ON/OFF
- (1) NAV/ANC | ON/OFF/ON
- (1) DOCKING | ON/OFF
- (1) LIVEWELL | ON/OFF
- (1) FRESH WATER | ON/OFF
- (1) BILGE | ON/OFF
It also features the following:
- (1) Horn Push Button | Red
Starboard Gauge Panel
This starboard side gauge panel is constructed out of dark gray faux woodgrain patterned plastic.
- Overall Dimensions: 8 7/8″ L x 5 1/2″ H
- Mounts: (4) 3/16″ Dia. mounting holes
This panel has (1) pre-installed multi-function gauge from Faria, part number GTC071D . This clear LED bulb illuminated gauge features a domed lens, silver colored bezel, black / silver colored face, transparent orange needles, digital hour meter, with black graphics. Features tachometer, fuel, and volt gauge readings.
Port Gauge Panel
This port side gauge panel is constructed out of dark gray faux woodgrain patterned plastic.
- Overall Dimensions: 8 7/8″ L x 5 1/2″ H
- Mounts: (4) 3/16″ Dia. mounting holes
This panel has (1) pre-installed multi-function gauge from Faria, part number GSC056 . This clear LED bulb illuminated gauge features a domed lens, silver colored bezel, black / silver colored face, transparent orange needles, with black graphics. Features speedometer and trim readings. Has (1) Pitot and (1) 6-Pin Male Deutsch connection.
Ignition Switch Panel
This ignition switch panel is constructed out of dark gray faux woodgrain patterned plastic.
- Overall Dimensions: 11 1/4″ L x 5 1/4″ H
- Mounts: (4) 3/16″ Dia. mounting holes
Features the following:
- (1) 12V Receptacle
- (1) 3/4″ Dia. Ignition Switch Cutout
Blank Panel Set
These blank panels are constructed out of dark gray faux woodgrain patterned plastic.Set contains port and starboard sides.
- Overall Dimensions: 6 5/8″ L x 5 5/8″ H (Each)
- Mounts: (4) 3/16″ Dia. mounting holes (Each)
Blank Steering Helm Panel
This blank steering helm panel is constructed out of dark gray faux woodgrain patterned plastic.
- Overall Dimensions: 13 3/8″ H x 10 1/2″ L
- Mounts: (6) 3/16″ Dia. mounting holes
Blank Stereo Panel
This blank stereo panel is constructed out of dark gray faux woodgrain patterned plastic. Features (1) 3″ Dia. cutout for MA100 stereos (not included).
- Overall Dimensions: 10 1/2″ L x 6 1/4″ H
- Mounts: (4) 3/16″ Dia. mounting holes
Systems Check Gauge
This sytems check gauge features a domed lens, silver bezel, black face, and white graphics. It measures approximately 2 1/4″ Dia. across the face including bezel x 4″ D overall and requires a cutout of approximately 2″ Dia. It has (2) single male pins and (1) 4-spade female connections. It has check engine, temperature, oil, and rev limit indicators. Mounting bracket included.
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Hurricane Boats
- Model: 191 / 192 OB SunDeck Sport
- Part Number: 447624A
- Part Manufacturer: Unavailable
- Material: Plastic
- Color: Gray Faux Woodgrain
- Set Up For: Evinrude Johnson Engines |4/6/8 cylinder inboard and 4/6/8/10/12 pole outboard (Tachometer)
Wiring diagram NOT included. You will need to check with a dealer for the proper pin/wiring sequencing.
