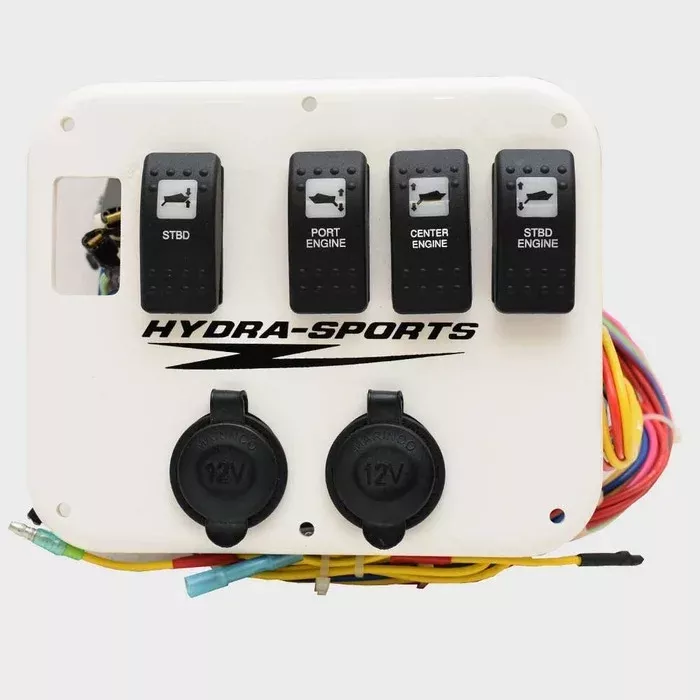

Boat part number 1085562 is a new switch panel from Hydrasports Custom Boats, part number 220-05185-P . Model and year unavailable.
This switch panel is constructed from white colored marine grade plastic with a glossy finish. Measures approximately 7″ L x 5 3/4″ H x 4″ D overall. The installed wiring harness hosts (1) 11-pin male, (1) 2-pin female, (1) 4-pin Deutsch, (7) spade female, (3) battery lug, and (16) wire lead connections. Features (1) 1 3/8″ H x 7/8″ W cutout in the face.
This switch panel features the following rockers:
- (1) Momentary On/Momentary Off: “STBD Engine”
- (1) Momentary On/Momentary Off: “Center Engine”
- (1) Momentary On/Momentary Off: “Port Engine”
- (1) Momentary On/Momentary Off: “STBD”
- (2) 12 volt Receptacle
Sold as a single.
Specifications
- Boat Manufacturer: Hydrasports Custom Boats
- Model/Year: Unavailable
- Part Number: 220-05185-P
- Material: Marine Grade Plastic
- Color: White
- Finish: Glossy
- Overall Dimensions: 7″ L x 5 3/4″ H x 4″ D
- Connections: (1) 11-Pin Male | (1) 2-Pin Female | (1) 4-Pin Deutsch | (7) Spade Female | (3) Battery Lug | (16) Wire Lead
