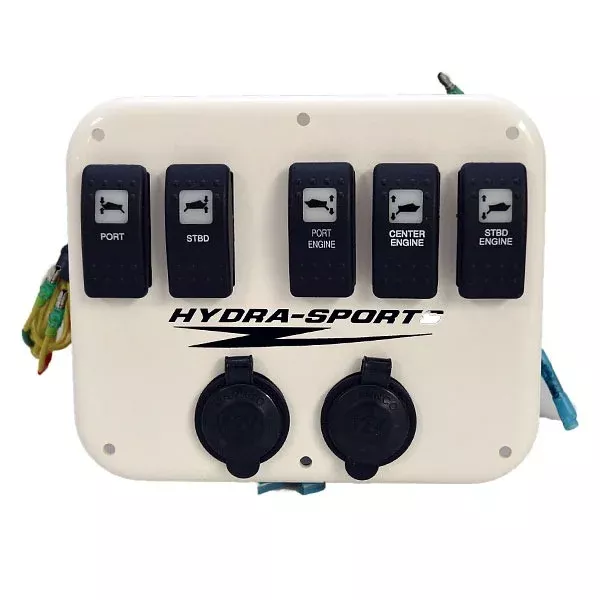

Boat part number 2000821 is a new Yamaha triple engine trim switch panel for Hydrasports Boats, part number HS14223177 .
This switch panel is constructed out of glossy off white plastic and measures approximately 7″ L x 5 3/4″ H x 5 1/2″ D overall. It has (6) 1/4″ Dia. mounting holes (hardware not included) and (1) 11-pin male, (1) 2-pin female, and (1) 4-pin female connections. Features (2) 12V Receptacles and the “Hydra-Sport” logo in glossy black lettering.
This panel features the following illuminated rocker switches:
- (1) PORT | ON/OFF/ON
- (1) STBD | ON/OFF/ON
- (1) PORT ENGINE | ON/OFF/ON
- (1) CENTER ENGINE | ON/OFF/ON
- (1) STBD ENGINE | ON/OFF/ON
Manufacuturer tag reads: PANEL-TRIM TRIP YAM C M08
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Hydrasports Boats
- Part Number: HS14223177
- Part Manufacturer: Unavailable
- Material: Plastic
- Color: Off White
- Finish: Glossy
- Overall Dimensions: 7″ L x 5 3/4″ H x 5 1/2″ D
- Mounts: (6) 1/4″ Dia. Holes
- Connections: (1) 11-pin male, (1) 2-pin female, and (1) 4-pin female
- Set Up For: Yamaha Engines
