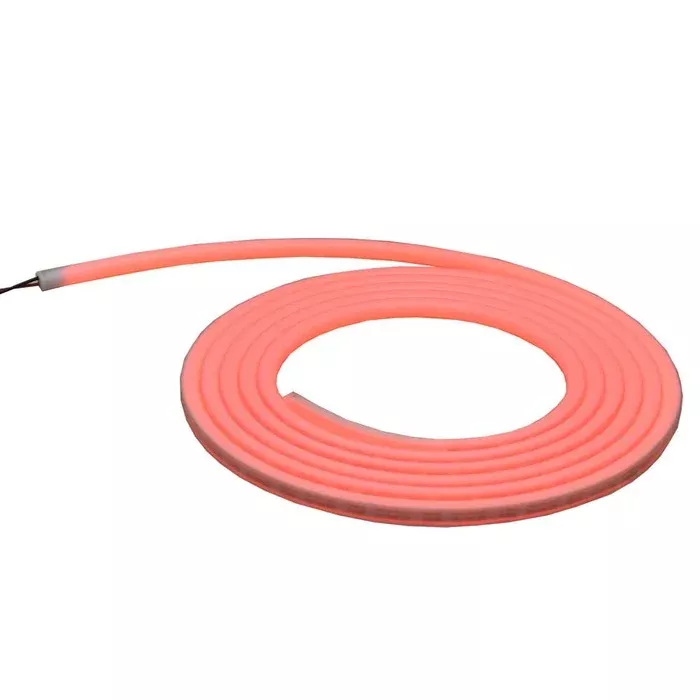

Boat part number 1096403 is a new Luna LED flexible rope light from ITC Marine, part number RRNLL12RD-19936 . Commonly used on Premier Pontoon Boats, part number 70009968 , but may be used on other boats.
Features (per manufacturer):
- 30,000 hours of estimated life
- Neon-like illumination
- Great for applications where spot free illumination is required. Example: under-cabinet applications to eliminate counter spots
- Innovative connector system allows for simple installation across virtually any application
This LED light strip is constructed out of diffused white silicone and measures approximately 199″ in overall length per manufacturer. Has (2) wire leads approximately 36″ in overall length.
Technical Specifications (per manufacturer):
- Illumination Color: Red
- Housing Material: Diffused Silicone
- Dimensions: .43″ H x .41″ W
- Wattage: 2.3 W/Ft
- Voltage: 12-14V DC
- Amp Draw: 0.2 A/Ft at 12V DC
- Lumens: Clear: 390Lm/ft, Diffused: 161 Lm/ft
- Cut Line Increment: 1″
- Wire Size: 18 AWG
- LED Count: 48 per foot
- Beam Angle: 120°
- IP Rating: IP66
- UV: UV Stable
Specifications:
- Boat Manufacturer: Premier
- Part Number: 70009968
- Part Manufacturer: ITC Marine
- Series: Luna
- Part Number: RNLL12RD-19936
- Color: White
- Illuminated Color: Red
- Overall Length: 199″ (per manufacturer)
- Connections: (2) wire leads approx. 36″
