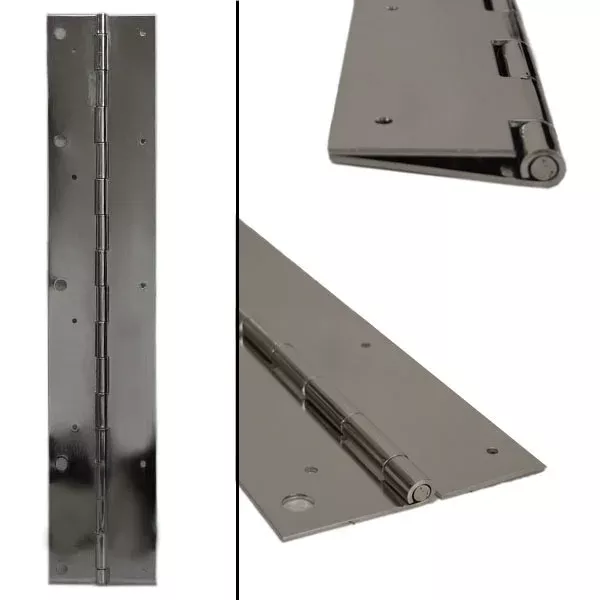

Boat part number 8201248 is a new piano hinge from Jefco, part number 3000598. Commonly used on Four Winns boats, part number 048-1255, but may be used on other boats.
This hinge is constructed out of 11 gauge polished stainless steel. It measures approximately 32″ L x 6 1/8″ W overall and folds down to 3 3/8″ W. There are (10) 1/4″ Dia. and (5) 5/8″ Dia. pre-drilled mounting holes.
Specifications:
- Boat Manufacturer: Four Winns Boats
- Part Number: 048-1255
- Part Manufacturer: Jefco
- Part Number: 3000598
- Material: 11 Gauge Stainless Steel
- Color: Silver
- Finish: Polished
- Overall Dimensions: 32″ L x 6 1/8″ W
- Folded Width: 3 3/8″
- Mounts: (10) 1/4″ Dia. / (5) 5/8″ Dia. Holes
