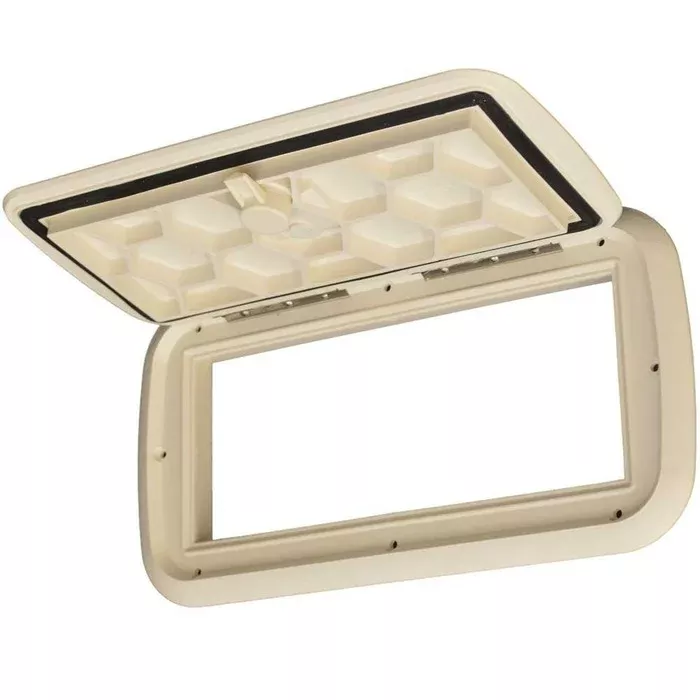

Boat part number 1075012 is a new deck floor hatch from Jim Black, part number 581-714-01 .
This Marine White deck hatch is constructed out of marine grade plastic with a textured finish. Measures approximately 14 1/2″ L x 7 3/4″ W x 7/8″ H overall. Requires a 11 3/4″ W x 5 1/8″ H cutout.
There are (8) approximately 1/8″ Dia. mounting holes spaced 5 3/8″ apart center on center. Features a stainless steel piano hinge, and (1) lift and twist-to-open butterfly locking latch.
Note: May contain minor scuffs and scratches from storage and handling.
Specifications:
- Part Manufacturer: Jim Black
- Part Number: 581-714-01
- Material: Plastic
- Color(s): Marine White
- Finish: Textured
- Overall Dimensions: 14 1/2″ L x 7 3/4″ W x 7/8″ H
- Inside Dimensions: 11″ W x 4 1/2″ H
- Cutout: 11 3/4″ W x 5 1/8″ H
- Mounts: (8) 1/8″ Dia. holes spaced 5 3/8″ apart center on center
