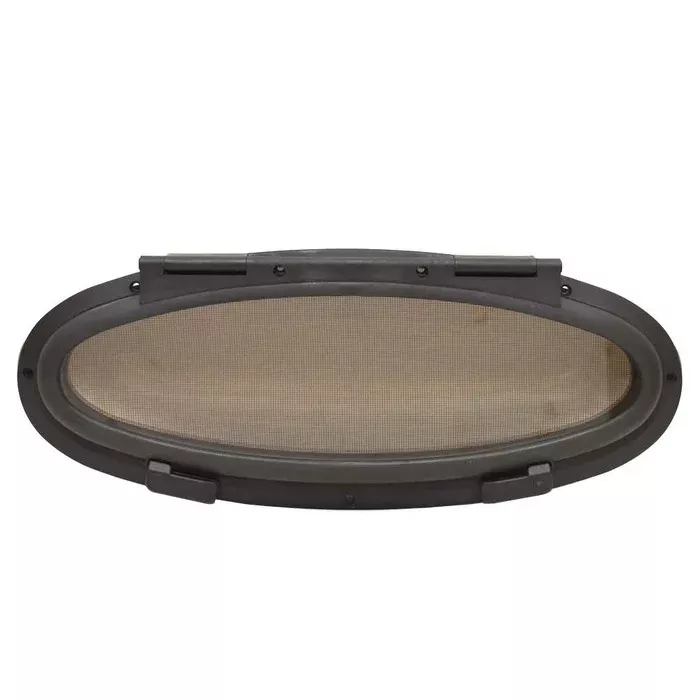

Boat part number 1115967 is a new 518 portlight from Jim Black, part number 593-518-09-02-02-1.00 .
This portlight window is constructed out of black plastic resin with a stainless steel trim ring. Manufacturer calls this an 18″ x 5″ portlight, we measure the opening to be 18″ W x 5 1/4″ H. Measures 21 3/8″ L x 8 1/2″ H overall, and requires an approximate 18 1/2″ L x 6 1/8″ H cutout. Mounts with (9) 1/4″ Dia. mounting holes throughout the perimeter.
Features chemical resistant UV stable plastic resin and custom seal for water resistance. Window is constructed from 1/4″ thick glass with a bronze tint, tempered for strength, clarity, and chemical resistance.
Includes bug screen.
Specifications:
- Part Manufacturer: Jim Black
- Part Number: 593-518-09-02-02-1.00
- Material: Plastic Resin
- Color: Black
- Window Color: Bronze Tint
- Finish: Matte
- Manufacturer Dimensions: 18″ x 5″
- Overall Dimensions: 21 3/8″ L x 8 1/2″ H
- Mounts: (9) 1/4″ Dia. mounting holes
