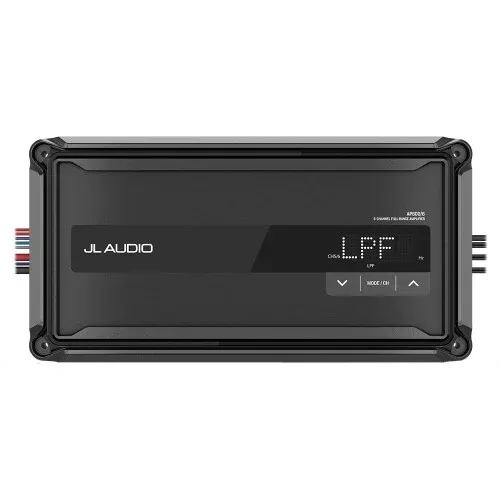

JL Audio AP 4 Channel Compact Marine Amplifier – AP600/6 [010-03430-00]

AP 6 Channel Compact Marine Amplifier – AP600/6POWER THE MOMENTWith these tough and ultracompact amplifiers, you can enjoy every note from every part of your boat.

• Efficient Class-D design
• Built-in LCD for manual control
• Ignition protected and IP-67 Rated (excluding cables)
• Easy tune feature

600-Watt 6 Channel AmplifierThis staggered-power 6-channel amplifier can power up to a maximum of six pairs of speakers or four pairs of speakers and one subwoofer.Easy Tune FeatureFor additional optimization, pair with a Fusion® stereo with built-in DSP, and download the Fusion® Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.Class-D Amplifier TechnologyThe highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.Rugged DesignThese amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.General

• Channels: 6
• Physical Height: 1.86″
• Physical Width: 11.81″
• Physical Depth: 5.9″
• Operating Voltage: 9-16 VDC
• Water and Dust Rating: IP67

Audio

• Amplifier Class: Class D
• RMS Power @ 4 OHM: Channels 1-4: 50 W x 4/150 W x 2 (Bridged); Channels 5-6: 100 W x 2/300 x 1 (Bridged)
• RMS Power @ 2 OHM: Channels 1-4: 75 W x 4; Channels 5-6: 150 W x 2
• Frequency Response: 20hz – 20kHz
• Input Sensitivity: Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
• Input Impedance: 11 kΩ (High) 20 kΩ (Low)
• Current Consumption (idle): 1000-150mA
• Fuse Rating: 70A
• Recommended Fuse Types: AFS, AGU, or MaxiFuse™
• Min. Copper Power/Ground Wire: 4 awg Wire
• Protection Circuits: Input under/over voltage, Over temperature, Output short circuit

Signal Processing

• High-Pass/Low-Pass Full Range Filter: Yes (user selectable)
• Filter modes – Channel 1 & 2: Off, Low-pass, or High-pass
• Filter modes – Channel 3 & 4: Off, Low-pass, or High-pass
• Filter modes – Channel 5 & 6: Off, Low-pass, or High-pass

Specifications:

• Bridgeable: Yes
• Channels – Available: 6
• Waterproof Rating: Waterproof
• Watts: 600w
• Box Dimensions: 2″H x 8″W x 16″L WT: 6.9 lbs
• UPC: 729218924532
