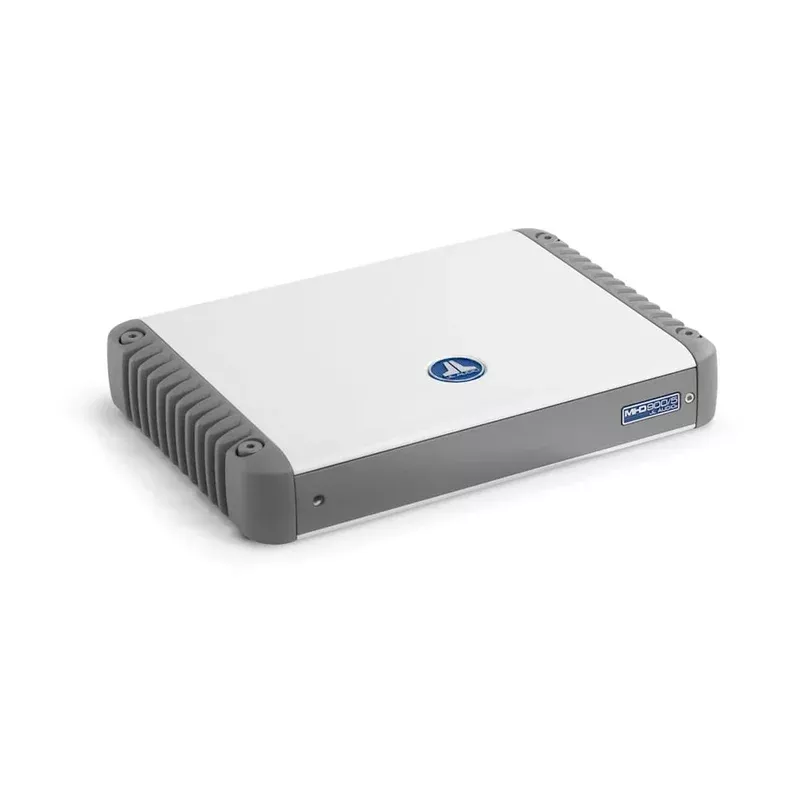

Thanks to its ability to act as a “one-box solution”, the JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (MHD900/5)fromNomadic Supply Company® is ideal for installations where space is at a premium and sound quality is the paramount goal.While extremely compact, this JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (MHD900/5) will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system… with a very serious 900 watts of power!Using our Single Cycle Control switching design and R.I.P.S technology, the JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (MHD900/5) delivers 100 W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.The JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (010-03103-00) features white and gray powder-coat finishes, a gasketed cover for the controls, and stainless steel hardware for durability in the marine environment.JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (010-03103-00) is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.
JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (MHD900/5) Features:
- 5-channel marine amplifier
- 100 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 at 1.5 to 4 ohms
- 75 watts RMS x 4 at 1.5 to 3 ohms + 500 watts RMS x 1 at 1.5 to 4 ohms
- 150 watts RMS x 2 bridged at 3 to 6 ohms + 500 watts RMS x 1
- 200 watts RMS x 2 bridged at 8 ohms + 500 watts RMS x 1
- Class D amp design with Single Cycle Control and R.I.P.S. (Regulated, Intelligent Power Supply)
- frequency response: 12-28,000 Hz (main channels); 12-10,000 Hz (sub channel)
- variable high-pass filter on front and rear channels (50-500 Hz, 12 or 24 dB/octave)
- variable low-pass filter on subwoofer channel (50-500 Hz, 12 or 24dB/octave)
- switchable subsonic filter on subwoofer channel (30 Hz, 24 dB/octave)
JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (MHD900/5) Includes:
- 5-Channel 12 volt amplifier
- Power/Ground/Turn-On plug
- Two 2-speaker connection plugs
- One 1-speaker connection plug
- 4 Mounting feet
- 2.5mm Allen-wrench
- 4mm Allen-wrench
- Four M4x40mm Flat head machine screws
- JL Audio badge w/ adhesive backing
- Owner’s manual
JL Audio MHD 5-Channel Full-Range 900W 12V Marine Amplifier (MHD900/5) Specifications:
RMS Power Output (Watts x Channels) 100 x 4
Frequency Response at Rated RMS Power —
THD at Rated RMS Power 0.03%
Signal to Noise Ratio 108 dB
Input Voltage 14.4v
Peak Power Output (Watts x Channels) N/A
Power at 2 Ohms (Watts x Channels) 75 x 4
Bridged Power (Watts x Channels) 150 x 2
Minimum Impedance Bridged 3
Minimum Impedance Unbridged 1.5
Amplifier Class D
Low-Pass Crossover Frequency 50-500 Hz (sub ch)
Low-Pass Slope (dB/octave) 12 or 24 dB/octave
High-Pass Crossover Frequency 50-500 Hz (F/R ch)
High-Pass Slope (dB/octave) 12 or 24 dB/octave
Bass Boost No
Bass Boost Frequency N/A
Fan Cooled No
Fuse Rating 60
Speaker Level Inputs Yes
Preamp Outputs No
Height (inches) 2
Width (inches) 10-3/4
Depth (inches) 9-1/2
Parts Warranty 2 Years
Labor Warranty 2 Years
