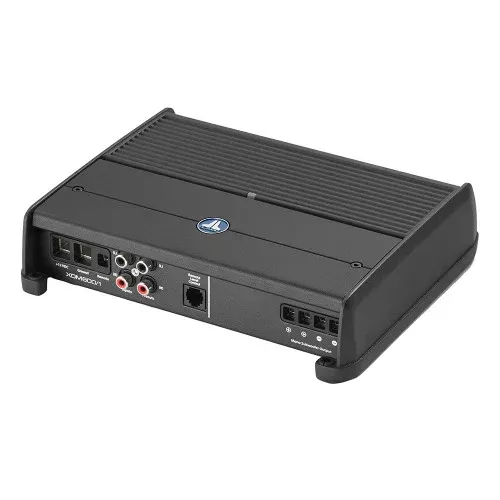

JL Audio XDM 600w Monoblock Amplifier – XDM600/1 [010-03116-00]

XDM 600w Monoblock Amplifier – XDM600/1600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω – 14.4VThis potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don’t let its small size fool you, though… the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2-ohm load (14.4V, 1% THD).Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately),the amplifier’s level can beadjusteddirectly from the driver’s seat or captain’s chair.Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications:

• Channels – Available: 1
• Watts: 600w
• Box Dimensions: 4″H x 9″W x 11″L WT: 5.2 lbs
• UPC: 699440986830

Owner’s Manual (pdf)View AllClose
