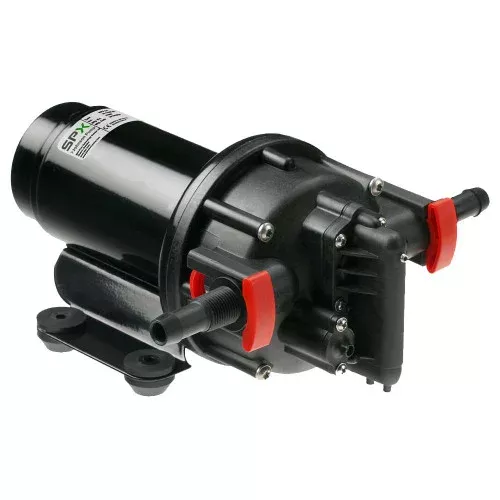

Johnson Pump Aqua Jet 3.5 GPM Water Pressure System – 12V[10-13395-103]

Aqua Jet Water Pressure Systems – 3.5GPM – 12V

The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.

Diaphragm: Santoprene

Valves EPDM

Body: PP/PPA

Motor: 85W

Capacity: 13 l/min – 3.5 GPM

Pressure Cut Off:2.8 bar – 41psi

Fuze Size: 10 A

Connection:3/8″ NPT/hose 1/2″, 1/2″NPT/Hose 3/4″, 1/2″ NPT, 3/4″ Hose

Weight: 2 kg /4.5lbs

Length: 236,5 mm/9.31″

Width: 210 mm/8.25″

Height: 116 mm/4.575″
Specifications:

• Gallons Per Minute: 3.5 GPM
• Max PSI: 41
• Volts: 12v
• Box Dimensions: 6″H x 8″W x 11″L WT: 6.3 lbs
• UPC: 7330717010461
