The KC HiLiTES FLEX ERA 3 Single Master LED Light Pod Kit (1288) from Nomadic Supply Company® is a compact, modular off-road light pod built around KC’s insert-based beam system. Sold as a single-light master kit, it includes both Combo and Spot beam lenses plus all hardware for a complete standalone mount — no wiring harness included, pairs with existing systems or the separately sold harness.
KC HiLiTES FLEX ERA 3 Single Master LED Light Pod Kit (1288) Features:
- Modular FLEX ERA® 3 Platform. Uses an insert-based beam system that lets you swap between Combo, Spot, and other optic patterns in seconds without tools — dial in the right output for any condition.
- Dual Amber/White LED Architecture. The pod delivers 60W white output (4,383 lumens) plus a 2W amber accent channel for a built-in amber marker mode from a single compact housing.
- IP68 Waterproof Rating. Fully sealed to IP68 — withstands complete submersion and serious off-road exposure including river crossings and heavy spray.
- 5000K Daylight White Output. Crisp, natural daylight-white light for maximum contrast and visibility on the trail.
- Two Beam Options Included. Ships with Combo Beam pre-installed and Spot Beam lens included — both output patterns ready straight out of the box.
- Compact Aluminum Housing. Black-finished aluminum alloy housing measures just 3.6″×3.5″×2.6″, easy to mount in A-pillar, ditch, and bumper locations.
- Note: Wiring Harness Not Included. This single-light kit does not include a wiring harness. Purchase the FLEX ERA Wiring Harness (KCH-6320) separately or upgrade to the 2-Light Master Kit (KCH-0288).

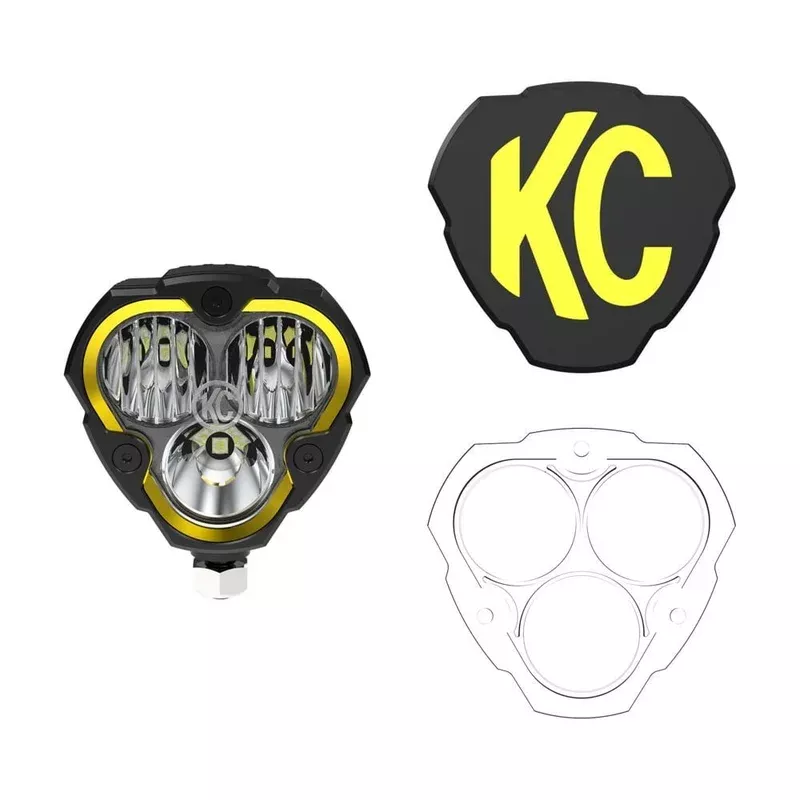

KC HiLiTES FLEX ERA 3 Single Master LED Light Pod Kit (1288) Includes:
- 1× FLEX ERA® 3 LED Light Pod (Combo Beam pre-installed)
- 1× Spot Beam Lens
- 1× Spare O-Ring
- 1× Black/Yellow KC Cover
- 1× B.O.L.T. Cover Removal Tool
KC HiLiTES FLEX ERA 3 Single Master LED Light Pod Kit (1288) Specifications:
- Manufacturer Part Number: 1288
- Wattage: 60W White / 2W Amber
- Lumens: 4,383 lm @ 5000K
- Beam Patterns: Combo (pre-installed), Spot (included)
- Beam Distance: 223m (Combo) / 353m (Spot)
- LED Color: White / Amber
- Color Temperature: 5000K
- IP Rating: IP68
- Input Voltage: 9V–16V
- Amp Draw: 4.94A (White) / 0.18A (Amber)
- Housing Material: Aluminum Alloy
- Finish: Black
- Dimensions: 3.6″ × 3.5″ × 2.6″
- Weight: 1.15 lbs
- UPC: 084709012885
KC HiLiTES FLEX ERA 3 Single Master LED Light Pod Kit (1288) Documents:
KC HiLiTES FLEX ERA 3 Single Master LED Light Pod Kit (1288) Installation Instructions
