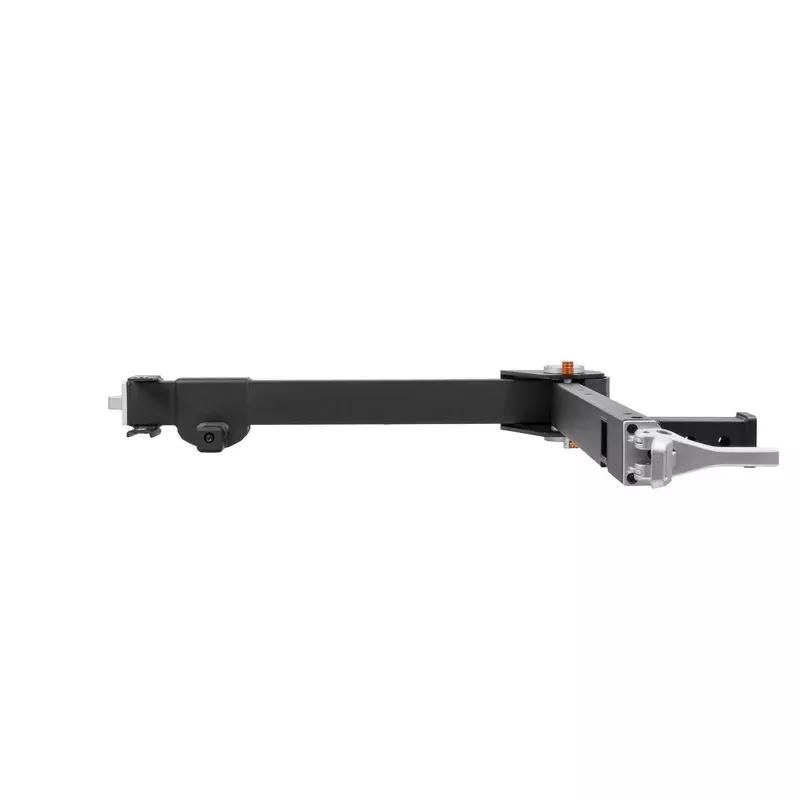

Kuat Pivot XD Swing-Away Hitch Extender for Bike & Cargo Racks

The Kuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike RacksfromNomadic Supply Company® is our heavy-duty upgrade to the popular Kuat Pivot V2, featuring a robust 350 lb load capacity and enhanced components throughout. This premium swing-away hitch offers 90 and 120-degree passenger side swing capabilities with a forged latch design and integrated Flatlock^™Hitch Cam system. Built with steel construction and backed by our No Worries Limited Warranty.Introducing the Kuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike Racks – the heavy-duty evolution of our proven Kuat Pivot V2 design. Engineered for serious hauling, the Pivot XD delivers a substantial 350 lb load capacity, representing a significant upgrade. The Kuat Pivot XD Swing Away Cargo Hitch Mount is designed to be accessorized with our Kuat Pivot XD Swing-Away Hitch Extender Accessory Hoop w/ MOLLE Panel and Kuat Pivot XD Swing-Away Hitch Extender Spare Tire Adapter.Every component has been enhanced for superior performance and durability. The forged latch design provides exceptional rigidity under load, while the custom-machined safety pin features works double duty, creating best-in-class stability. The included locking hitch pin and Flatlock™ Hitch Cam system work together to keep your cargo carrier securely attached. The sealed ball bearing pivot creates a smooth opening and effortless opening and closing experience.The Kuat Pivot XD Swing Away Cargo Hitch Mount maintains the versatility that made the Kuat Pivot V2 popular, offering both 90 and 120-degree passenger side swing away capabilities for easy rear vehicle access. Whether you’re loading gear or need to access your tailgate, the smooth swing mechanism gets your carrier out of the way quickly.Built with robust steel construction throughout, the Kuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike Racks is designed to handle whatever you throw at it. From bike racks to cargo carriers, this hitch provides the strength and reliability you need for your adventures. Plus, it’s backed by our comprehensive No Worries Limited Warranty for complete peace of mind.The
Küat Pivot XD is the heavy-duty evolution of the classic swing-away hitch, specifically engineered for the overlanding and off-road community. Designed to handle the rigors of the trail while maintaining Küat’s signature rattle-free performance, the Pivot XD transforms your standard 2-inch receiver into a versatile gear platform.Whether you need to clear space in your truck bed by relocating a full-size spare or want full access to your SUV’s tailgate while loaded with bikes, the Pivot XD provides a premium, non-permanent solution.The Pivot XD is more than just an extension; it’s the foundation for a complete rear-vehicle storage system. By adding the Accessory Molle Hoop, you gain a dedicated space for mounting Rotopax, recovery boards, or gear cases. Pair it with the Spare Tire Adapter to securely mount your 5-lug or 6-lug wheel.
Ready to optimize your rig? The Küat Pivot XD offers the strength of a permanent swing-out bumper with the flexibility of a removable hitch accessory, ensuring you never have to choose between gear storage and vehicle accessibility again.

ACCESSIBLE

The Pivot XD’s swing-away design gives you instant access to your vehicle’s rear doors and cargo area, even with bikes mounted. Perfect for spontaneous stops, gear access, and those essential coffee breaks on your epic road trips.

90° to 120° Swing

The Pivot XD’s heavy-duty 350 lb capacity and smooth swing operation make bike loading and unloading effortless at any trailhead. Get to the adventure faster with gear that works as hard as you do.Perfect for truck owners and van-lifers, the Pivot XD swings to the passenger side giving you fast, full access to the tailgate or trunk.

Accessory Ready

Kuat is working to expand your setup with our Kuat Pivot XD Swing-Away Hitch Extender Accessory Hoop w/ MOLLE Panel and Kuat Pivot XD Swing-Away Hitch Extender Spare Tire Adapter, turning your Pivot XD into the ultimate adventure platform. This isn’t just a swing away hitch extender-it’s the foundation of your complete gear hauling system.1) The Kuat Pivot XD Swing-Away Hitch Extender Accessory Hoop w/ MOLLE Panel bolts directly to the Pivot XD, providing versatile mounting options for aftermarket gear, such as fuel packs, recovery boards, jack mounts, and our Kuat IBEX Cargo Rack Recovery Shovel/Axe Mount (AIXSVMT).2) For even more off-road utility, the Spare Tire Adapter (offered in three wheel fitments) is designed to integrate directly to the Accessory Hoop, allowing adventurers to carry a spare with confidence.Engineered for reliability with precision-forged components. The Pivot XD’s forged latch ensures exceptional rigidity and the pressed ball-bearing pivot creates a smooth, open-ended experience under heavy loads.Integrates with truck, van, or SUV setups with a minimum Class III 2-inch hitch. The Pivot XD’s design provides optimal clearance for spare tires (Kuat Pivot XD Swing-Away Hitch Extender Spare Tire Adapter) and maintains a clean, professional appearance when not in use.True convenience with smooth swing away action. Access your tailgate easily while keeping your bikes securely mounted – perfect for trailhead gear loading and post-ride celebrations.Load and unload your bikes with confidence. The Pivot XD’s 350 lb capacity and stable platform design make bike handling a breeze, whether you’re dealing with heavy e-bikes or multiple mountain bikes.

350 LB. weight capacity

Built to handle serious loads, the Kuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike Racks supports up to 350 pounds – a substantial 40% increase over the V2’s 250 lb capacity. This heavy-duty rating means you can confidently carry multiple bikes, larger cargo boxes, or heavier equipment without worry.90° to 120° Swing Away HitchMaximum versatility with dual swing positions. Choose 90 degrees for standard clearance or 120 degrees for maximum rear access. The smooth swing mechanism allows you to quickly move your cargo out of the way for tailgate access or rear door opening.

Forged Latch

Engineered for strength, the forged latch provides superior rigidity compared to cast or fabricated alternatives. This precision-forged component ensures your swing away hitch maintains a secure closed position even under maximum load conditions and road vibration.

Patented Flatlock™ Hitch Cam

Advanced cam-locking mechanism provides a tight, rattle-free connection to your vehicle’s receiver. The cam system applies consistent pressure to eliminate play and ensure smooth operation mile after mile.

Locking hitch pin

Includes a locking hitch pin that adds a layer of security to the hitch assembly. The durable lock mechanism helps deter a potential threat while still allowing for smooth, easy operation when in use.

Bike Rack Compatible

Transforms your existing 2″ hitch bike rack into a versatile swing away bike rack. Designed for maximum compatibility, the Pivot XD works with most platform and tray-style bike racks, giving you the freedom to access your vehicle’s rear door or tailgate without removing your bikes.Designed For AccessoriesThe Kuat Pivot XD Swing-Away Hitch Extender Accessory Hoop w/ MOLLE Panel bolts directly to the Kuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike Racks, providing versatile mounting options for aftermarket gear, such as fuel packs, recovery boards, jack mounts, and our Kuat IBEX Cargo Rack Recovery Shovel/Axe Mount (AIXSVMT). For even more off-road utility, the Kuat Pivot XD Swing-Away Hitch Extender Spare Tire Adapter (offered in three wheel fitments) is designed to integrate directly to the Accessory Hoop, allowing adventurers to carry a spare with confidence.Oversized HandleThe oversized forged handle is easy to grip and operate, while securely locking the machined safety pin in place for rock-solid stability while driving (in tow?).

Kuat Pivot XD Swing-Away Hitch Extender for Bike & Cargo Racks Features:

• Heavy-Duty Capacity: Boasts a 350 lb on-road weight capacity (250 lb off-road), making it capable of carrying full-size spares up to
  37 inches.
• Smooth Operation: Features a conical ball bearing pivot for effortless movement, even when fully loaded.
• Dual-Angle Swing: Swings out to
  90° or 120°, providing ample clearance to drop a tailgate or open rear doors without interference.
• Rattle-Free Design: Utilizes the patented
  Flatlock Hitch Cam system to eliminate movement and noise within the receiver.
• Versatile Compatibility: Works seamlessly with most 2-inch hitch-mounted bike racks and Küat’s modular accessory system.
• 350 lbs load capacity
• A pressed ball bearing pivot creates a smooth, open-ended experience
• 90 and 120-degree swing-away capabilities
• Forged latch design for exceptional rigidity
• Passenger side swing away
• Included Locking Hitch Pin
• Patented Flatlock™ Hitch Cam
• Steel Construction
• Sandy Black Powder Coat
• Built to accept our Kuat Pivot XD Swing-Away Hitch Extender Accessory Hoop w/ MOLLE Panel and Kuat Pivot XD Swing-Away Hitch Extender Spare Tire Adapter
• No Worries Limited Warranty

Kuat Pivot XD Swing-Away Hitch Extender for Bike & Cargo Racks Compatibility:

• Cars, Trucks, SUVs, and Vans – YES
• Flat-Towed Vehicles – YES
• Travel Trailers – NO
• Motorhomes – NO
• Fifth-Wheel – NO

The Pivot XD is not rated for use on RVs, trailers, motorhomes, or towing.Must be a chassis-mounted hitch receiver. Must be less than 64” distance from the center of the rear axle to the center of the hitch pin hole.Minimum Class III hitch required. Keep in mind that carrying weight further from the hitch will increase the weight tension on your vehicle’s hitch.

CAPACITY

350 lbs. Maximum weight capacity

WEIGHT

68 lbs.Kuat racks are limited to 3 bikes (maximum 250 lbs), and all other bike racks or cargo systems should follow the distance-to-weight guidelines:

• Up to 28″ (from the accessory’s hitch-pin hole to the furthest point): 350 lbs max total weight
• 28–40″ (from the accessory’s hitch-pin hole to the furthest point): 250 lbs max total weight

Loads within the 40″ limit may exceed some Class III receiver ratings — check your vehicle or hitch manufacturer for exact tongue-weight details.SHIPPING WEIGHT74 lbs.SHIPPING DIMENSIONS42″ x 24″ x 9″

Kuat Pivot XD Swing-Away Hitch Extender for Bike & Cargo Racks Documents:

Kuat Pivot XD Swing-Away Hitch Extender for Bike & Cargo Racks Dimensions Drawing
Kuat Pivot XD Swing-Away Hitch Extender for Bike & Cargo Racks Loading Guide
Kuat Pivot XD Swing-Away Hitch Extender for Bike & Cargo Racks Owner’s ManualKuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike Racks Dimensional DrawingKuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike Racks Loading GuideKuat Pivot XD Swing-Away Hitch Extender for Cargo & Bike Racks Owners Manual
