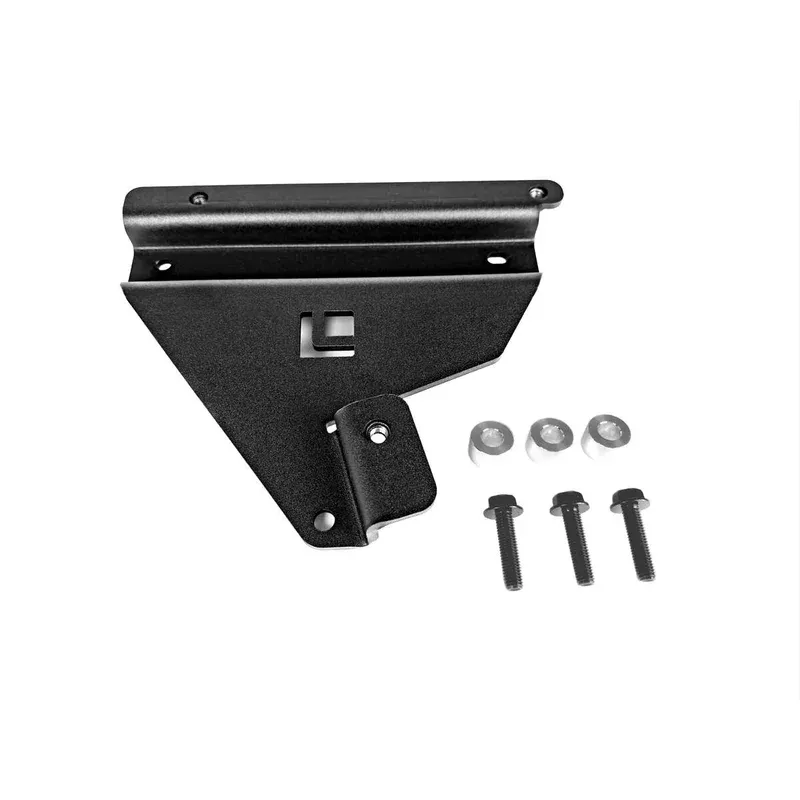

The Leitner Designs Tire Relocation Bracket for Ineos Grenadier (00-GETRB-1765) from Nomadic Supply Company® is the bolt-on solution for running larger tires on your Grenadier. By relocating the spare tire 1¾” up, 1¾” to the right, and 1¾” outboard, this bracket gives you clearance for tires up to 37″ in diameter without interfering with the rear door, windshield wiper, or backup camera.Manufactured from heavy-gauge zinc-plated and powder-coated steel, this bracket bolts to your vehicle in 30 minutes using factory mounting points and will last the life of your vehicle.NOTE: This bracket keeps the wheel in its original orientation and retains your factory spare tire cover and storage box. This bracket does not flip the wheel rim side out. Not compatible with wheel and tire combinations exceeding a 25mm offset (e.g., Vossen wheels).The Leitner Designs Tire Relocation Bracket for Ineos Grenadier is designed, engineered, and manufactured in Corona, California.
Leitner Designs Tire Relocation Bracket for Ineos Grenadier Features:
- Clears Tires Up to 37″: Relocates the spare 1¾” up, 1¾” to the right, and 1¾” outboard, eliminating rear door, wiper, and backup camera interference
- Preserves Factory Spare Cover: Keeps the wheel in its original orientation, retaining the factory spare tire cover and interior storage box
- No-Drill Bolt-On Install: Uses factory mounting points. Installs in 30 minutes with all hardware included
- Heavy-Gauge Steel Construction: Manufactured from heavy-gauge steel, zinc-plated and powder-coated for all-weather durability
- Grade 10.9 Fasteners: Black Zinc-Nickel-plated fasteners for long-term clamping strength
- 25mm Offset Limitation: Not compatible with wheel and tire combinations exceeding a 25mm offset
Leitner Designs Tire Relocation Bracket for Ineos Grenadier Specifications:
- Material: Heavy-gauge steel
- Finish: Gold zinc-plated and powder-coated
- Fasteners: Grade 10.9 Black Zinc-Nickel-plated
- Weight: 10 lbs.
- Spare Tire Relocation: 1¾” up, 1¾” right, 1¾” outboard
- Maximum Tire Size: Up to 37″ diameter
- Manufacturing: Designed, engineered, and manufactured in the USA
Leitner Designs Tire Relocation Bracket for Ineos Grenadier Documents:
Leitner Designs Tire Relocation Bracket for Ineos Grenadier (00-GETRB-1765) Installation Instructions
