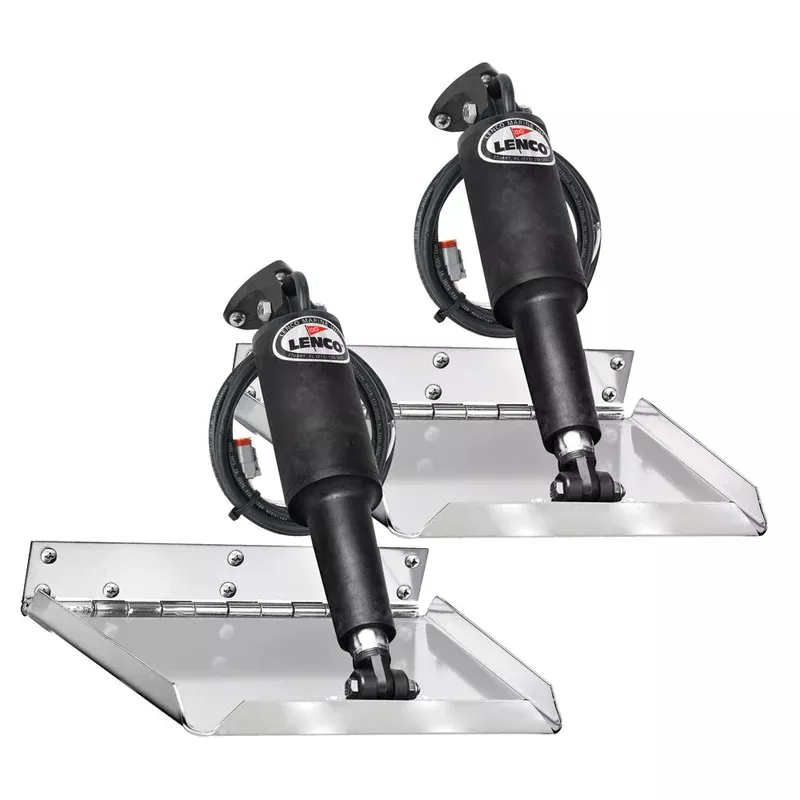

Lenco 14″ x 12″ Standard Performance Kit w/o Switch — Product
14″ x 12″ Standard Performance Trim Tab Kit w/o Switch Kit- 12VUpgraded electro-polished trim blades with stouter 1/4″ diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge – 304 SS with 1″ turned up edges (the 16″ x 12″ and the 18″ x 14″ have an 85 degree inside taper) and 1/4″ diameter hinge pin. Kit includes Standard Actuators with 5/16″ SS bolts. The actuators mount at the trailing edge of the bladesKit Contents:
- 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
- 2 each of 15054-001 actuators with 6′ lead and Deutsch plugs
- 2 each of 30133-103 20′ actuator extension wiring harnesses
- 2 each of 15085-001 (116) upper mounting bracket with gland seal
- 2 each of 50014-001 (119) lower mounting bracket
- 1 each of the Lenco owner’s / installation manual
- All necessary stainless steel mounting hardware
Specifications:
- Suggested Boat Length: 19′ to 34′
- Length of Tab: 14″
- Width of Tab: 12″
- Minimum Transom Height: 11″
- Blades: 12 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Actuators: 12-volt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Lenco Marine x 12″ standard performance kit without switch 14″ 15038-101. Equipped with the same fast response electric actuator for precise control. Can dive into all…
SKU: NVN-56427
MPN: 15038-101
UPC: 874847004602
