The Lensun 200 Watt 12V 9BB Flexible Solar Panel Blanket w/ Waterproof MPPT ControllerfromNomadic Supply Company® is a handy, portable device that’s ideal for camping, RVing, boat trips, and most outdoor activities to juice up your mobile devices off-the-grid. You can also use our Lensun 200 Watt 12V Flexible Solar Panel Blanket w/ Waterproof MPPT Controller at home to harvest energy from the sun.Weighing in at only 5kgs/11lbs, the Lensun 200 Watt 12V 9BB Flexible Solar Panel Blanket w/ Waterproof MPPT Controller is an extremely lightweight solar charging system with a foldable design that takes minimal storage space. The folded size is only 380 x 380 x 65 mm/15 x 15 x 2.5 inches!Lensun 200 Watt 12V 9BB Flexible Solar Panel Blanket w/ Waterproof MPPT Controller comes with a 20A Waterproof MPPT solar controller, 5m cables ready to charge a battery, and solar generators.Using the highest high-quality A-Grade PERC 9BB Monocrystalline Solar Cells with 23.5% efficiency, our Lensun 200 Watt 12V 9BB Flexible Solar Panel Blanket w/ Waterproof MPPT Controller is perfect for keeping your 12V dual battery system charged, powering fridges, LED camp lights, and other campsite gadgets.The Lensun 200 Watt 12V 9BB Flexible Solar Panel Blanket w/ Waterproof MPPT Controller comes standard with an Anderson Style Connection Output, allowing you to use the 20A Waterproof MPPT Regulator that’s included. This high-quality style connection eliminates the risk of poor connections from frayed wires or loose terminals – just Plug & Play!Our Lensun 200 Watt 12V 9BB Flexible Solar Panel Blanket w/ Waterproof MPPT Controller is built with in-line fuses to protect your battery and accessories, heavy-duty clamps for stronger power transfer between the solar panel and the battery, and an external regulator to be able to monitor the state of charge.
Lensun 200 Watt 12V 9BB Flexible Solar Blanket Battery Charging System Features:
- Made of high-quality solar cells and black Fiberglass back sheet
- Comes with Anderson plug connectors making installation easier – just plug and play.
- Comes with 5m cables so that you can park your camper van or trailer in the shade but still get the most out of the sun.
- Comes with a 20A Waterproof MPPT solar regulator that acts as the go-between to transfer power generated from the blankets to the battery. Solar regulators ensure that the correct charge is supplied safely and efficiently and protect batteries from overcharging.
- Extra Outer bag with solar controller and cables.
- Easy to set up, easy to carry, and easy to store.
- Made from durable waterproof Oxford cloth, complying with the IP65 standard.
- It is operational over a wide range of temperatures, from -40° F to 185° F (-40° C to 85° C).
Lensun 200 Watt 12V 9BB Flexible Solar Blanket Battery Charging System Features:
- Charge for AGM, Liquid, GEL, and Lithium Battery
- Waterproof: Suitable for indoor or outdoor use
- Battery Types: Gel, AGM, Liquid, Lithium(default: Gel)
- Bluetooth: Support mobile phone APP, wireless monitoring
Lensun 200 Watt 12V 9BB Flexible Solar Panel PERC Solar Cells:
- High-performance solar cells are the decisive factor for top-quality solar modules.
- First-rate efficiencies and excellent output consistency.
- The uniform color of the cell surface looks more beautiful.
- PERC is a good improvement on the conventional standard solar cell, the density of energy increases and also ROI.
- Advanced diffusion technique ensures the homogeneity of the cell’s energy conversion efficiency.
- PERC solar cells component efficiency is as high as 23.5%, generating more power per unit area. The conventional standard solar cell is only 18-19%.
- The 9BB(9-busbar) technology optimizes electricity collection and ensures optimal electricity yield from your system.
- 9BB technology performs better against crack than the other 2BB, 3BB, or 4BB technology.
- Reduces the risks of the cells’ crack and the damage to busbars, and solar arrays with higher stability and reliability and higher power output.
Lensun 200 Watt 12V 9BB Flexible Solar Blanket Battery Charging System Specifications:
- Model: LS-200BK-AD
- Rated Power Output: 200W
- Optimum Operating Voltage [Vmp]: 18V
- Optimum Operating Current [Imp]: 11.11A
- Open Circuit Voltage [Voc]: 21.24V
- Short Circuit Current [Isc]: 12.22A
- Cell Technology: Monocrystalline Solar Cells
- Solar Cells Efficiency：23.5%
- Production Tolerance: +3%
- Output Type: Solar Cables, Solar Controller
- Dimensions(unfolded): 1403 x 1124mm/55.2 x 44.2 inch
- Dimensions(folded): 380 x 380 x 65 mm/ 15×15 x 2.5 inch
- Net. Weight: 5.2 kgs/11.4 lbs
- All Technical data at standard test condition AM=1.5, E=1000W/mm, Tc=25℃

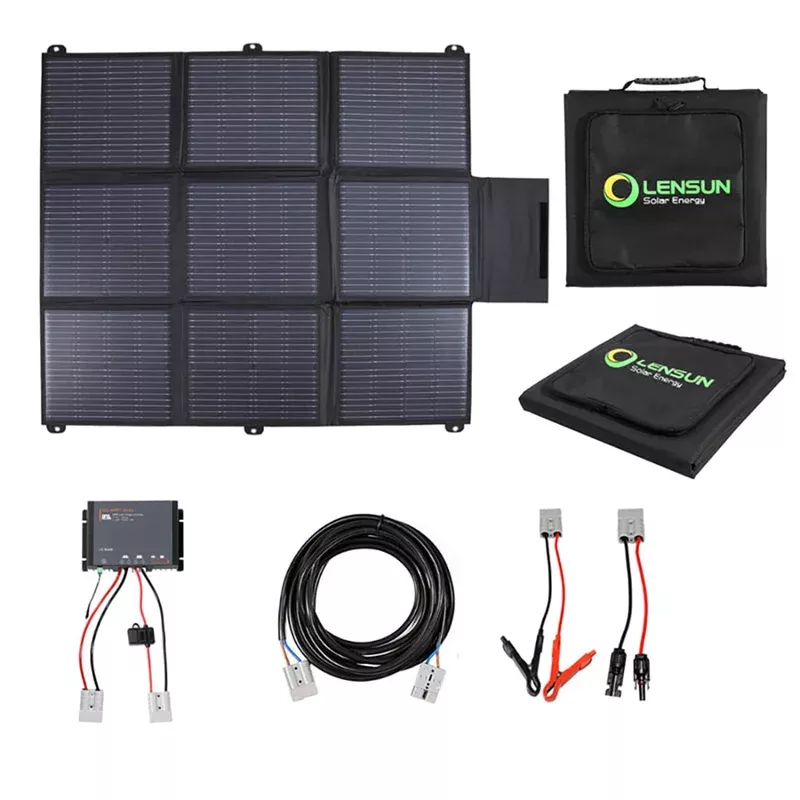

Lensun 200 Watt 12V 9BB Flexible Solar Blanket Battery Charging System Includes:
1 x 200 Watt foldable solar blanket panel
1 x 20A Waterproof MPPT Solar Controller
1 x 5m Anderson to Anderson Extension Lead
1 x Anderson to Standard connectors (charge for solar generator)
1 x Anderson to Alligator Clip Adaptor(charge for battery)
