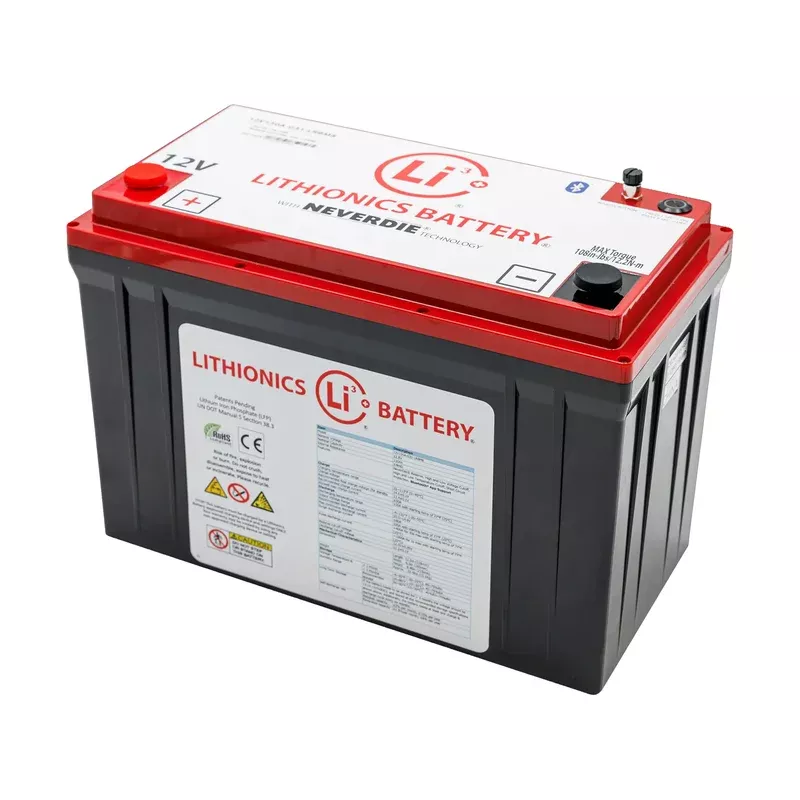

The Lithionics 12V 130AH G31 Battery for Winnebago Revel RVs (12V130A-G31-LRBM8)fromNomadic Supply Company® is a lithium-ion iron phosphate (LiFePO4) chemistry battery with an internal Battery Management System (BMS) technology called NeverDie Compact BMS.The BMS monitors the voltage, current, and temperature of the cells inside the battery and protects the battery from potential damage by disconnecting the battery circuit when the monitored parameters go outside of the allowed limits. The BMS also transmits monitoring data over the integrated Bluetooth interface, allowing customers to check the battery data on their mobile phones or tablets.Use a 1000-watt inverter charger maximum on a single battery. Use a 2000-watt inverter charger maximum on a twin-battery setup. Consult Lithionics for conditions required for a 3000-watt inverter.
Lithionics 12V 130AH G31 Lithium LifeP04 Battery for Winnebago Revel RVs (12V130A-G31-LRBM8) Specifications:
ENERGY:130 AMP HOURS625 CRANKING AMPSPULSE AMPS: 1000 (1 SEC)1664 WATT-HOURSLength:12.5in (318mm)Width:6.5in (165mm)Height:8.46in (215mm)Weight: 33.4lbs (15.1Kg)Model:
12V130A-G31-LRBM8Nominal Voltage:
12.8 VoltsNominal Capacity:
130 AHNominal Watt Hours:
1664 WHInternal Resistance:
≤4mΩChargeCharging temperature range:
32 to 113 FahrenheitCharge voltage:
14.4V Recommended (14.6V Max.)Recommended float charge voltage:
13.5Recommended charge current:
≤50AAllowed max charge current:
100A with starting temp of 77°F (25°C)DischargeDischarging temperature range:
-4 to 131 FahrenheitOutput Voltage Range:
10.0~14.6VRecommended discharge current:
≤80AMax discharge current:
100A with starting temp of 77°F (25°C)Pulse discharge current:
<1000A for 1s max with starting temp of 77°F (25°C)Discharge cut-off voltage:
10.4±0.1VMechanical characteristicsLength:
12.5in (318mm)Width:
6.5in (165mm)Height:
8.46in (215mm)Weight:
33.4lbs (15.1Kg)StorageStorage Temperature & Humidity Range:
<1 Month
-4~95°F (-20~35°C), 45~75%RH<3 Months
14~86°F (-10~30°C), 45~75%RHRecommended Storage
59~95°F (15~35°C)，45%RH~75％RHSelf-discharge rate:
Residual capacity
≤3% per month; ≤15% per yearReversible capacity
≤1.5%per month; ≤8% per yearLong-Term Storage:If the battery needs to be stored for> 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.INTERNAL NEVERDIE® FEATURES:MiniBMS® Cell/Module Sensors and Microprocessors with Automatic Cell BalancingNeverDie® Power Reserve (Spare Fuel) for Hotel Loads and Worry-Free Power for Engine CrankingOver-Charge, Over-Discharge, and Short-Circuit Protection (LVC, HVC, SCC)Pushbutton Storage Operation, Optional Remote Switch Harness Available (Part Number 75-224-196)If the battery needs to be stored for> 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge and discharge cycle every six months.
Lithionics 12V 130AH G31 Battery for Winnebago Revel RVs Owner’s Manual:
Lithionics 12V 130AH G31 Battery for Winnebago Revel RVs (2V130A-G31-LRBM8) Owner’s Manual
