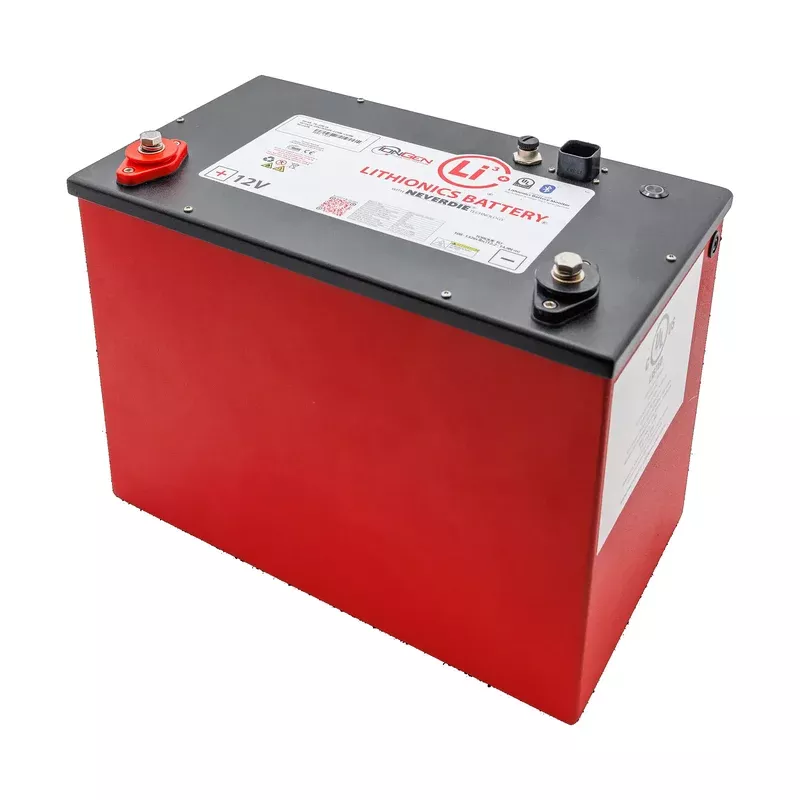

The new Lithionics 12V 310AH GTX Self-Heating LifeP04 Lithium Battery (GTX12V310A-E1508-CS200-UL)from Nomadic Supply Company® has a built-in BMS, heater, and Bluetooth, and is UL certified for vehicles.Our Lithionics BOSS 302 305Ah Self-Heating LifeP04 Lithium Battery is a Fully UL Listed battery with Bluetooth® APP, UL Listed Internal Heater, Fireproof Enclosure, RV-C CANbus Telemetry, Remote Switch, NeverDie® Reserve Energy, and Battery Life Recorder.
Lithionics 12V 310AH GTX Self-Heating LifeP04 Lithium Battery (GTX12V310A-E1508-CS200-UL) Features:
- NeverDie® Power Reserve (Spare Fuel) for Hotel Loads and Engine Cranking
- Over-Charge, Over-Discharge, and Short-Circuit Protection (LVC, HVC, SCC)
- Low/High-Temperature Charge/Discharge Protection
- Internal Heating Kit: Permits Charging as low as -20C/-4F
- Pushbutton On/Off switch for Safety and Storage
- Battery Gauge and Status Codes for Health Monitoring
- Bluetooth wireless telemetry with Lithionics Battery iOS and Android app
- CANbus telemetry in the RVIA RV-C format (M12)
- An alternator Field Control Circuit (FCC) (AMPSEAL8)
- Remote LED illuminated On/Off Power switch (AMPSEAL8)
- Auxiliary DC Breaker control (AMPSEAL8)
Lithionics 12V 310AH GTX Self-Heating LifeP04 Lithium Battery (GTX12V310A-E1508-CS200-UL) Specifications:
VOLTAGE AND CAPACITY
12.8V 310Ah 3,968WhELECTRICAL
<3mΩ Resistance
99% Coulombic Efficiency
<3% Self-Discharge Rate
(per month)
Prismatic, LiFePO₄ Cells
Power Connection: Copper
Terminals, Nickel Plated, M8-
1.25 Female ThreadsMECHANICAL
Mounting Orientation: Upright
position only (black lid up)
0.09″Aluminum 5052 Enclosure
Iridite Chromate Conversion
Coating + Powdercoat Paint
Enclosure Corrosion Protection
Ingress Protection: IP66CHARGE
14.4V ±0.2V
-4°F ( -20°C) to 140°F (60℃)
<150A Recommended Charge
Current
13.6V Float Voltage
<200A ±0.2V Charge CurrentDISCHARGE
10.8V to 14.4V ±0.2V
-22°F (-30°C) to 140°F (60°C)
<150A Recommended Discharge
Current
<230A Discharge Current
<1,200A Pulse Current (1
second)
10.8V ±0.2V Cut-Off VoltageSHIPPING
UN3480, Class 9CERTIFICATIONS
UN38.3, UL1973 (battery
assembly), UL 1642,
UL1973 (cells)STORAGE
Refer to the Lithionics® Website
for the Storage ProcedureINTERNAL HEATER
35W Power Rating
Thermostat Activation and
Deactivation (Internal): 37°F
(3°C) On,>41°F (5°C) Off *Charging and discharging
rates vary with temperature
and usage
*UL1973 testing: Maximum
charge and discharge
currents were tested at
25°C/77°F
Lithionics 12V 310AH GTX Self-Heating LifeP04 Lithium Battery (GTX12V310A-E1508-CS200-UL) Documents:
Lithionics 12V 310AH GTX Self-Heating LifeP04 Lithium Battery (GTX12V310A-E1508-CS200-UL) Data Sheet
