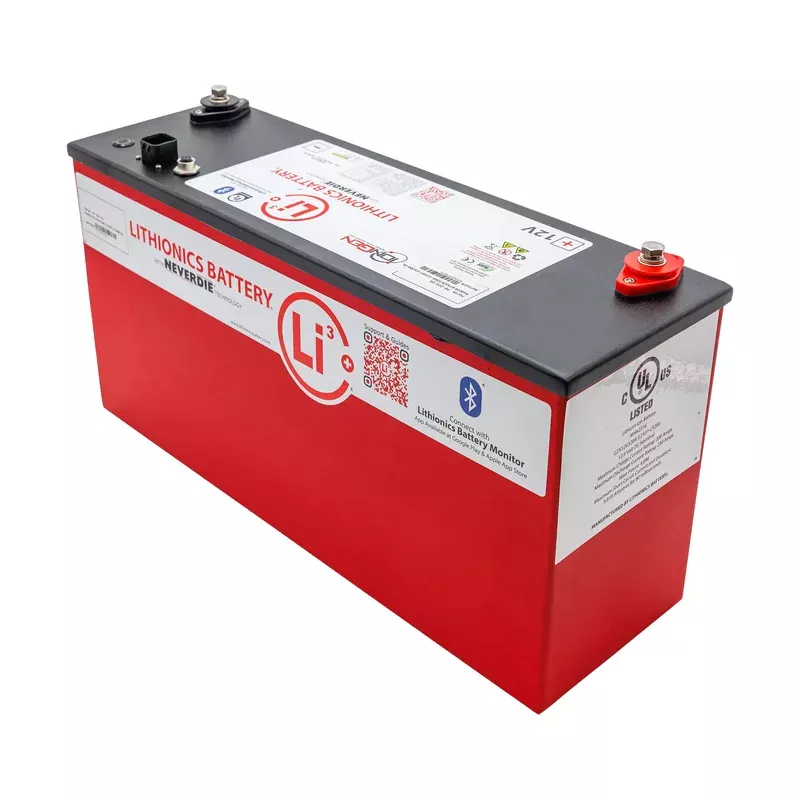

Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) fromNomadic Supply Company® is the latest from Lithionics, with a Built-in BMS, heater, Bluetooth, and is smaller than 3 group 31 100 amp hour batteries.
UL Model:
The UL Model of this battery is only sold to OEM manufacturer’s/builders, such as Winnebago, who implement full UL compliant Installation. UL requires the Internal BMS Battery to be connected to a DC Breaker System that is controlled by the BMS for redundancy. A total of two batteries can be connected to the single DC Breaker with no need to add another fuse, the DC Breaker is a fuse and a DC Disconnect. In order to maintain the electrical warranty on a Winnebago, the battery purchase and installation needs to be done ONLY at a Winnebago Dealership.
Consumer Model:
The Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater Consumer Model is for aftermarket installations and authorized dealers such as Nomadic Supply Company. The DC Breakers System is an option, but not a requirement for the Consumer Model. What makes the battery attain the highest-level UL Standards 1973 is the battery being a UL Model with the DC Breaker System.
Application Note: Compatible with inverters up to 3000 watts. Do not use with higher wattage invertors or to parallel-connected inverters. You must have at least 2x of these batteries in parallels when used with aVictron Multiplus 12/3000/120 Inverter.External BMS-module kit recommended for Marine use.There is an on/off/reset switch on the lid of the battery; if you need to mount the switch on a panel, then you will need 2 parts for each battery:1) Lithionics Ampseal 8 Wiring Harness Kit (75-H1FBR-CS2)2) Lithionics Illuminated Battery Switch (75-240-180)
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater Energy:
320 AMP HOURSPULSE AMPS: 1200 (1 second)4096 WATT-HOURS
Lithionics 12V 320AH E2107 GTX Self-Heating LifeP04 Lithium Battery (GTX12V320A-E2107-CS200-UL) Features:
- NeverDie® Power Reserve (Spare Fuel) for Hotel Loads and Engine Cranking
- Over-Charge, Over-Discharge and Short-Circuit Protection (LVC, HVC, SCC)
- Low/High Temperature Charge/Discharge Protection
- Internal Heating Kit: Permits Charging as low as -20C/-4F
- Pushbutton On/Off switch for Safety and Storage
- Battery Gauge and Status Codes for Health Monitoring
- Bluetooth wireless telemetry with Lithionics Battery iOS and Android app
- CANbus telemetry in the RVIA RV-C format (M12)
- An alternator Field Control Circuit (FCC) (AMPSEAL8) Remote LED illuminated On/Off Power switch (AMPSEAL8)
Lithionics 12V 320AH E2107 GTX Self-Heating LifeP04 Lithium Battery (GTX12V320A-E2107-CS200-UL) Specifications:Model:
GTX12V320A-E2107-CS200Nominal Voltage:
12.8 VoltsNominal Capacity:
320 AHNominal Watt Hours:
4096 WHInternal Resistance:
<3 milliohmsLithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) ChargeCharging temperature range:
32F/0C to 131F/55CCharge voltage:
14.4V recommended, 14.6V maximumRecommended float charge voltage:
13.4V – 13.6VRecommended charge current:
150AAllowed max charge current:
200ALithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) DischargeDischarging temperature range:
-4F/-20C to 131F/55COutput Voltage Range:
10.4V to 13.4VRecommended discharge current:
150AMax discharge current:
230APulse discharge current:
1200A (1 SEC)Discharge cut-off voltage:
NeverDie® Power Reserve @ 12.00V Low-Voltage Cut-Off @10.4VLithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) Mechanical characteristicsLength:
20.3inWidth:
6.4inHeight:
10.0inWeight:
Approx. 68lbs (30.8kg)Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) StorageStorage Temperature and Humidity Range:<1 Month
-4~95°F (-20~35°C), 45~75%RH<3 Months
14~86°F (-10~30°C), 45~75%RHRecommended storage
59~95°F (15~35°C)，45%RH~75％RHSelf-discharge rate:Residual capacity
≤3% per month; ≤15% per yearReversible capacity
≤1.5%per month; ≤8% per yearLong Term Storage:If the Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater needs to be stored for> 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge and discharge cycle every six months.
Lithionics 12V 320AH E2107 GTX Self-Heating LifeP04 Lithium Battery (GTX12V320A-E2107-CS200-UL) Documents:
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater User GuideLithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater Data Sheet
