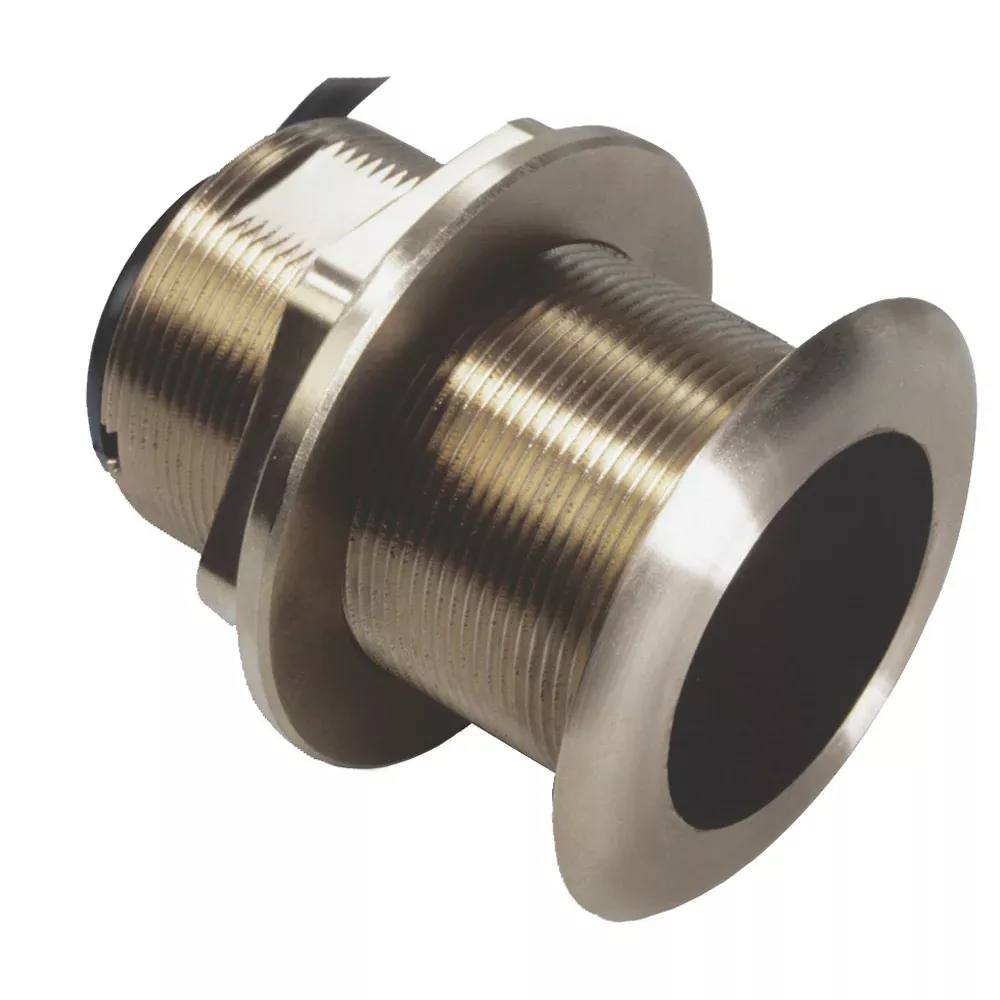

Lowrance B60-12, 12 Degree Tilted Element Transducer [B60-12-BL]

B60 Tilted Element™ 12°

12° tilted version is designed for 8° – 15° deadrise angles

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.

Features:

• Depth/Temp
• 50/200 kHz
• 600w RMS
• Mid-performance
• Bronze

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 7
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30′
• Box Dimensions: 4″H x 8″W x 10″L WT: 4.85 lbs
