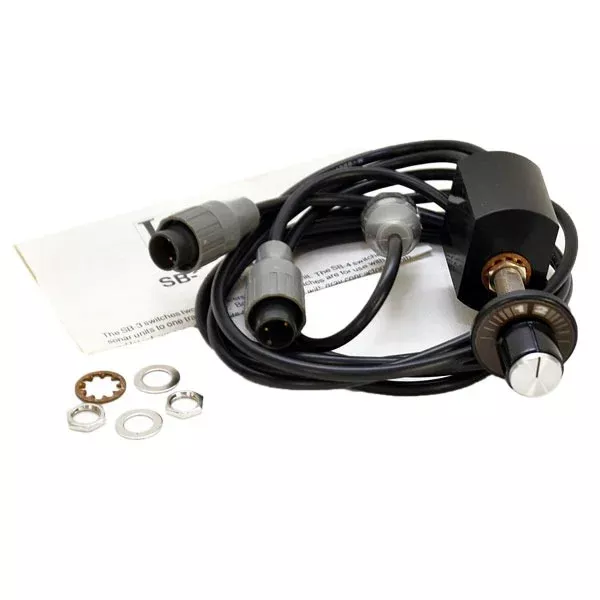

Boat part number 1046942 is a new boat rotary switch box from Lowrance / LEI, model number SB-4 . For use with 1989 and later Lowrance sonar units / transducers with gray connectors.Mounts via console or dash. Allows the use of (2) Lowrance, Eagle or Sea Electronics 192 kHz sonar units with 1 transducer. Fits units that use HS-WS.Specifications:
- Part Manufacturer: Lowrance / LEI
- Model: SB-4
- UPC: 042194501901
- Max Thickness: 1″
- Min Clearance: 3-3/4″
- Cutout: 3/8″ dia.
- Overall Dimensions (w/o cable): 1-3/4″ W x 3-1/2″ D x 1-1/4″ H
- Cable Length: approx. 46″
- Connectors: Gray; (2) 2 pin male, (1) 2 pin female
