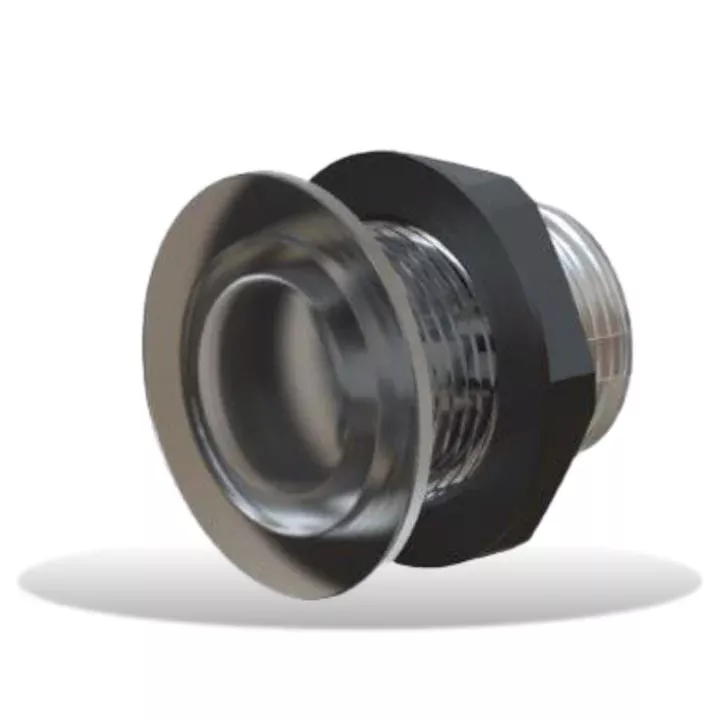

The Lumishore Eclipse CL30 Blue LED Courtesy Light from Nomadic Supply Company® ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat.
Lumishore Eclipse CL30 Blue LED Courtesy Light Features:
- Constructed of a durable clear acrylic body, completely water seaLED Light and IP67 rated.
- Available in single color blue and two other color options.
- Measuring 33mm (1.3″) in diameter, ECLIPSE Courtesy Lights are small, discreet and easy to install with a 2 wire hookup, flush able and fit almost anywhere onboard.
Lumishore Eclipse CL30 Blue LED Courtesy Light Specifications:
- Color: Blue
- LED Light Type: 3 x 0.5W Blue LED Lights
- Customer Control Options: On/Off Switch or ECLIPSE Command Center
- Electrical Installation: Simple 2 Wire Installation
- Supply Voltage Range: 12V DC Only (10 – 15V DC)
- Max Current Draw (12V DC): 0.1A
- Ingress Protection: IP67
- Front Diamater (Bezel): 33mm (1.3″)
- Depth: 30.0mm (1.180″)
- Hole Diameter for fitting: 25.4mm (1.0″)
- Mechanical Installation: Panel
