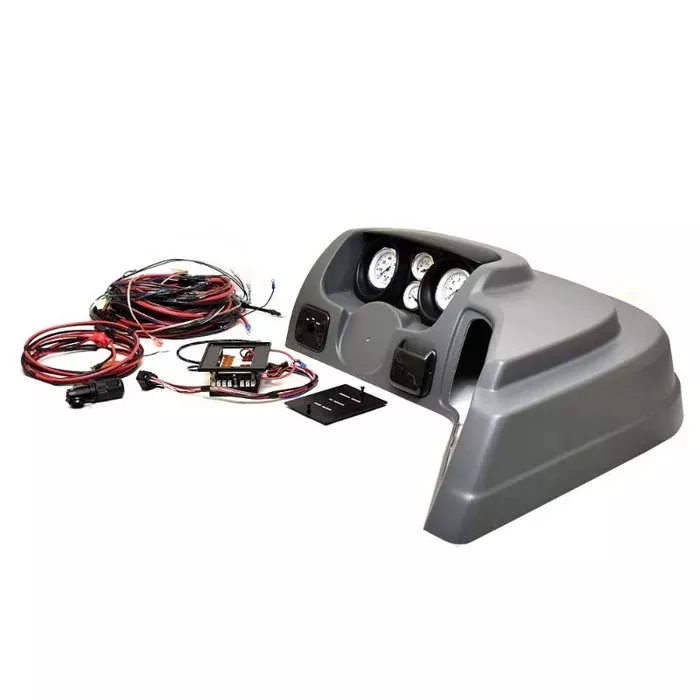

Boat part number 8303179 is a new OEM dash panel for a 2015, 1875 Impact model Lund boat, part number 2163534 .
This dash panel is constructed out of fiberglass with a gray textured plastic coating and brushed black accents. Measures approximately 32 1/2″ W x 30 1/2″ L x 10 1/4″ H overall. Features ignition switch panel with 7/8″ Dia. cutout. Hosts 14 1/2″ L x 6″ H cutout in the face. The installed wiring harness (1) 9-pin male, (1) 2-pin female, and (4) wire lead connections.
This dash panel features (4) pre-installed Mercury gauges. Each of these clear halogen illuminated gauges feature a silver bezel, domed lens, white face, black lettering numerals and accents, and orange tipped black needles.
This panel features the following gauges:
- (1) 65 MPH Speedometer: 895285A43 | Pitot and (2) spade connections
- (1) 7000 Tachometer Gauge: 895283A45 | (4) threaded bolt connections | Set up for 4/6/8 Cylinder and 2/3/4/5/6 Pole engines
- (1) Trim Gauge: 895292A41 | (1) spade (3) threaded bolt connections | Set up for Mercury engines
- (1) Fuel Gauge: 895291A41 | (3) threaded bolt and (1) spade connections
This dash panel includes (1) wiring harness, (1) fuse block, and (1) battery harness as shown in photos.
Sold as a single.
Specifications
- Boat Manufacturer: Lund Boats
- Model: 1875 Impact
- Year: 2015
- Part Number: 2163534
- Material: Fiberglass (Body) | Marine Grade Plastic Coated
- Color: Gray | Black (Accents)
- Overall Dimensions: 32 1/2″ W x 30 1/2″ L x 10 1/4″ H
- Connections: (1) 9-Pin Male | (1) 2-Pin Female | (4) Wire Lead
- Set up for 4/6/8 Cylinder and 2/3/4/5/6 Pole Engines
- Set up For Mercury Engines
