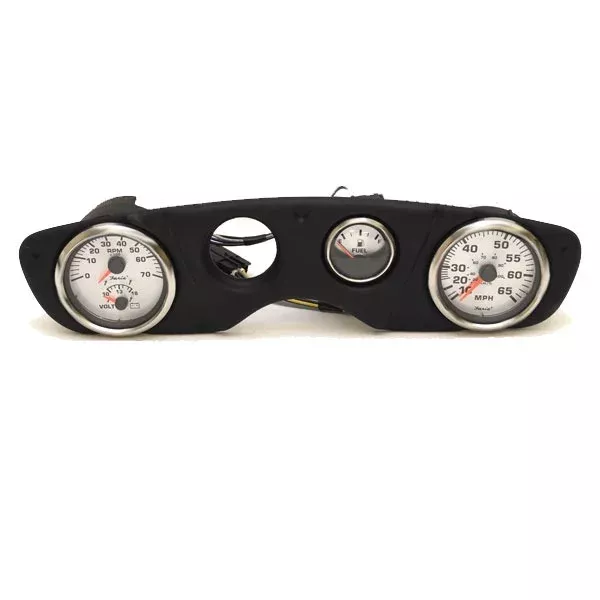

Boat part number 8302755 is a new gauge dash panel from Lund, part number 2074402 .
Constructed out of black marine grade plastic with a matte finish, this panel measures approximately 17 5/8″ L x 4″ H overall. Hosts (1) 2″ Dia. gauge cutout.
This panel hosts (3) pre-installed Spun Silver Series gauges from Faria. These gauges features silver bezels, domed lens, spun silver faces, black lettering, numerals, accents, and red needles.
The pre-installed gauges are as follows:
- (1) 7000 RPM Tachometer / Volt Gauge | GTC048A | Has (1) 4-Spade connector | Set up for 4/6/8 Cylinders or 4/6/8/10/12 Outboard Poles.
- (1) Fuel Gauge | GPC101A | Has (1) 4-Spade connector
- (1) 65 MPH Speedometer Gauge | SEK638A | Has pitot connection.
Specifications:
- Boat Manufacturer: Lund
- Part Number: 2074402
- Material: Plastic
- Color: Black
- Finish: Matte
- Overall Dimensions: 17 5/8″ L x 4″ H
- Mounts: (5) Indentations
- Connections: (1) 4-Spade Male, (1) 4-Spade Female, (1) 2-Pin male
- Set up for 4/6/8 Cylinders or 4/6/8/10/12 Outboard Poles
