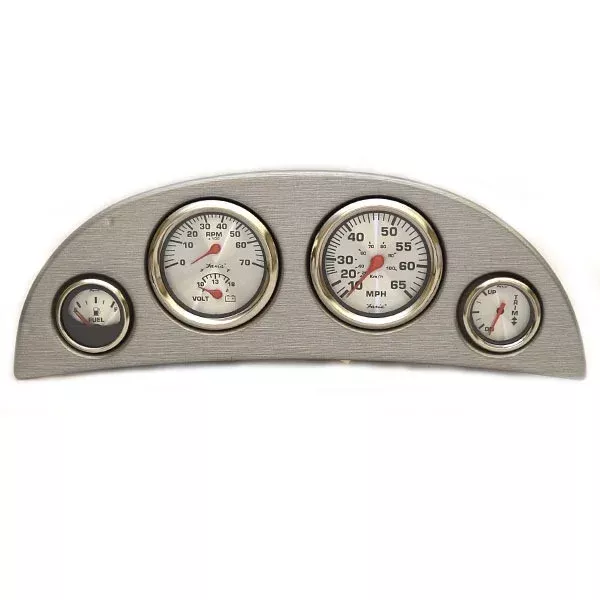

Boat part number 8302728 is a new gauge panel from Lund, part number 2109117 .
This panel is constructed out of a light metallic gray marine grade plastic with a glossy finish. Measuring approximately 16 7/8″ L x 6″ H overall. This gauge panel features pre-installed Spun Silver Series Faria gauges, that have flat lenses, spun silver faces, red needles, black, lettering, numerals, and accents.
The pre-installed gauges are as follows:
- (1) Multi-Function 7000 RPM Tachometer / 10-18 Volt | GTC047A | Has (1) 4 spade male connection. Set up for 4/6/8 Inboard Cylinders or 4/6/8/10/12 Outboard Pole engines.
- (1) Trim Gauge | GBC135A | Has (1) 4 spade male connection. Set up for Honda engines.
- (1) Fuel Gauge | GPC102A | Has (1) 4 spade male connection.
- (1) 10-65 MPH Speedometer | SEK639A | Has (2) single spade male and (1) pitot style connections.
Specifications:
- Boat Manufacturer: Lund
- Part Number: 2109117
- Material: Plastic
- Color: Gray
- Finish: Glossy
- Overall Dimensions: 16 7/8″ L x 6″ H
- Mounts: (7) Pre-indentations around the perimeter
- Connections: (1) 2 pin male, (1) 4 spade male
- Tachometer Set Up For 4/6/8 Inboard Cylinders or 4/6/8/10/12 Outboard Pole Engines.
- Trim Set Up For Honda Engines.
