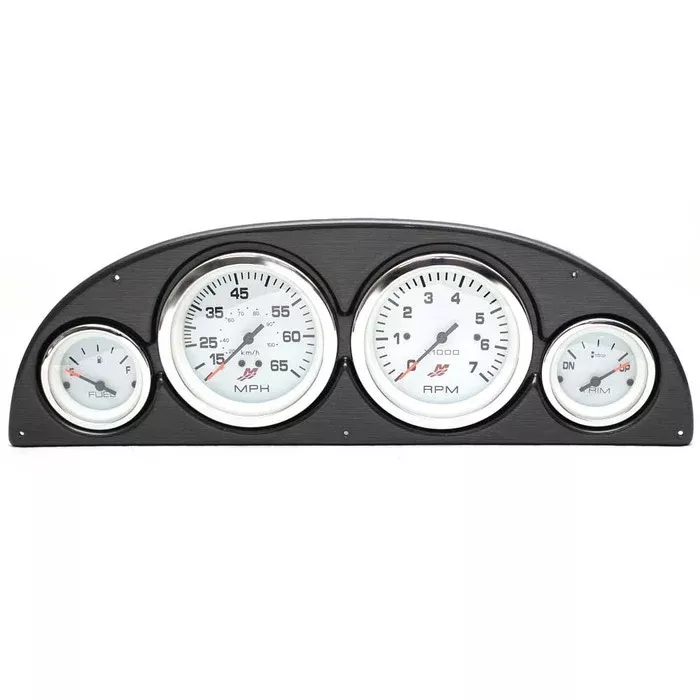

Boat part number 8304197 is a new gauge panel for 1600 / 1800 Alaskan SS / Angler model Lund Boats, part number 2116666 .
This gauge panel panel is constructed out of brushed gray colored marine grade plastic with a glossy finish. It measures approximately 14 1/2″ W x 4 3/4″ H overall. It has (5) 1/8″ Dia. mounting holes (hardware not included).
This panel has (4) pre-installed SmartCraft gauges from Mercury Marine. Each clear halogen illuminated gauge has a domed lens, silver colored bezel, white face, black / orange needle, and black graphics. The tachometer and speedometer each feature the “Mercury” logo on their faces.
This panel features the following gauges:
- (1) Fuel | P/N: 895291A41
- (1) Tachometer | P/N: 895283A45 | Gasoline | 4/6/8 cylinder inboard and 2/3/4/5/6 pole outboard
- (1) Speedometer | P/N: 895285A43 | (1) pitot connection
- (1) Trim | P/N: 895292A41 | Mercury engines
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Lund
- Model/Year: Unavailable
- Part Number: 2116666
- Part Manufacturer: Unavailable
- Material: Plastic
- Color: Brushed Gray
- Finish: Glossy
- Overall Dimensions: 14 1/2″ W x 4 3/4″ H
- Mounts: (5) 1/8″ Dia. Holes
- Fuel: Gasoline
- Set Up For: 4/6/8 cylinder inboard and 2/3/4/5/6 pole outboard
- Used on These Engines: Mercury
