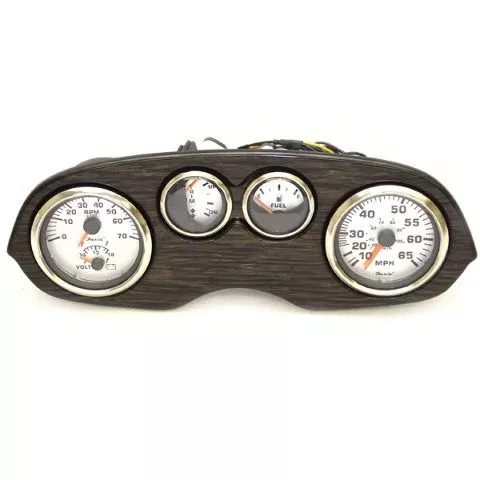

Boat part number 1091649 is a new gauge panel for Lund Boats, part number 2219436 .
Constructed out of marine grade plastic in a black faux woodgrain color with a glossy finish. Measures approximately 14 7/8″ L x 5 1/4″ H overall. Has (1) 4 spade male and (1) 2 pin male connections. Features (4) pre-installed Spun Silver Gauges from Faria; these clear halogen bulb illuminated gauges feature domed lens, silver bezel, spun silver face, black lettering, numerals, accents, and orange needles.
The gauges are as follows:
- Multi-Function Gauge | GTO048A | 7000 RPM Tachometer / Volt Gauge | Set up for 4/6/8 Cylinder or 4/6/8/10/12 Outboard poles
- Trim Gauge | GPC100A | Set up for Mercury / Yamaha (2001 – 2012) engines
- Fuel Gauge | GPC101A
- 65 MPH Speedometer Gauge | SEK638A | Has pitot connection
Has the following connections:
- (1) 4-spade male
- (1) 2-pin male
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Lund
- Part Number: 2219436
- Part Manufacturer: Unavailable
- Materials: Plastic
- Color: Black Faux Woodgrain
- Finish: Glossy
- Overall Dimensions: 14 7/8″ L x 5 1/4″ H
- Connections: (1) 4 Spade Male, (1) 2 Pin Male
- Tachometer set up for 4/6/8 Cylinders or 4/6/8/10/12 Outboard poles.
- Trim set up for Mercury / Yamaha (2001 – 2012) engines.
